チャネル: | 長さ: ≤10m | 原産地: | 中国(本土) | プレーヤーのタイプ: | DVDプレイヤー | 銘柄: | tx | モデル番号: | txpof | 特殊機能: | 小型システム | コネクタスタイル: | toslink-toslink | 素材: | ゴールドのメッキtプラグ | 繊維径: | 1.0ミリメートル | 外径: | 4.0ミリメートル、カスタマイズ受け入れる | ジャケット材料: | pe、pvc、cpe | ジャケット色: | 黒、をカスタマイズ受け入れる | 減衰: | 以内180dB/km | 温度: | -40-+ 85℃ | 長さ: | 1メートル、をカスタマイズ受け入れる | 標準: | rohs、ce |
包装
包装: | 標準的なパッキング |
Detailed product description

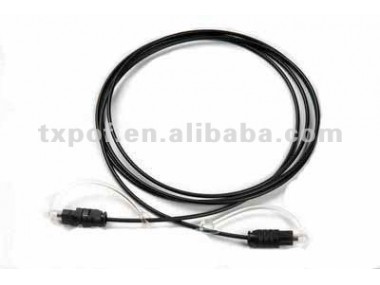

1. Audio OFC Toslink cable
2. International universal toslink standard connector
3. Gold-plating T port and gold-plating jacket
4. Fiber optic cable with PE/PVC outer jacket
5. OD:2.2mm ,black jacket
6. Length:1 M
Feature
1. Minimum transmission loss,error rate(only 2% or so)
2. Small volume ,soft and good reelability,shock resistance
3. High data transmission utilization ratio and high security
4. Suppress interference from radio wave and electromagnetism
5. Light weight ,non-conducting, higher reliability
6. Easy to install and low cost
Application
1. Multimedia sound systems
2. Digital camera ,vidicon, monitoring system
3. Hd video and audio embeded system,MD player
4. Web TV,digital television, Satellite TV
5. TV,WBN,Indicators system
6. 3D,4D Hd digital cinema, Digital imaging system
7. Car,plane,steamboat multimedia
Audio OFC Toslink cable wire material
Parameter | Unit | Numerical value |
Fiber optic core diameter | mm | Φ1.0;customized acceptΦ0.25,Φ0.50,Φ0.75 |
Fiber optic core material | --- | PMMA |
Finished product diameter | mm | Φ2.2;customized acceptΦ2.2mm-10.0mm |
Outer material | --- | Antiflaming CPE,Antiflaming PE Antiflaming PVC,nylon PA,TPU,TPR |
Outer color | --- | Black ;customized accept other colors |
Attenuation | dB/km | <180 refraction |
Bend radius | --- | 5xcore Diameter |
Numerical aperture (N.A) | --- | 0.5;customized accept 0.3-0.6 |
Meet standard | --- | EuropeROHS,USA Standard(SONET.OC-48),Japan standard(G.653),China industry standard(YD/T1447-2006) |
Audio OFC Toslink cable
