| 原産地: | 中国(本土) | 銘柄: | プロテック | モデル番号: | petch | 出力: | hdmi | 機能: | コンポジットビデオ | アプリケーション: | マルチメディア | 限定保証: | 1年部品と労働 | 各製品gw: | 80グラム | 外形寸法: | 66 (d) x55 (w) x20 (h) | 1 ctnを含んでいる: | 139ピース | ctn gw: | 12.1キログラム | 1 ctn広い幅: | 41 × 34 × 36センチ | 電力供給: | 5ピンusbケーブル |
包装
| 包装: | 中立ギフトボックス、カラーボックスまたはカスタムデザイン。 |

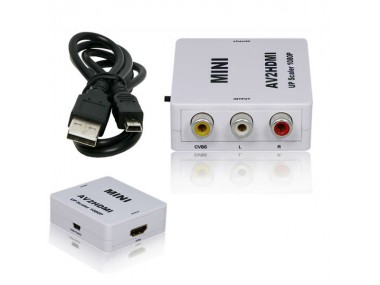

AV to HDMI Mini Converter PETCH
Item : AV to HDMI Mini Converter , analog to digital conversion,analog composite input to HDMI output , Up-scales AV to HDMI, Composite Signal to HDMI Signal
Introduction
The AV to HDMI Mini Converter is a universal converter for analog composite input to HDMI 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.
Features
* Up-scales AV to HDMI 720P or 1080P
* No need to install drivers, portable, flexible, plug and play.
* Provide advanced signal processing with great precision, colors, resolutions, and details;
* Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.
* Support HDMI 1080p or 720p output.
Specification
Signal Inputs | Composite Signal (Yellow,White,Red) |
Output Video | HDMI Signal |
Dimensions(mm) | 66(D)x55(W)x20(H) |
Net Weight (g) | 40 |
Composite input | PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N. |
HDMI output | 1080P/60Hz, 720P/60Hz. |
Limited Warranty | 1 Year Parts and Labor |
Operating Temperature | 0°C to +70°C |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10°C to +80°C |
Storage Humidity | 5% to 90 % RH (no condensation) |
Power Supply | USB Power Cable |
Power consumption (Max) | 5W |
Converter Unit Cert. | FCC,CE, |
Power Supply Cert | CE,FCC |
User Manual | English Version |
Package Contents
1) Main unit
2) USB Power Cable
3) User Manual
Three colors for choose : white , gold , blue
