| 原産地: | 中国(本土) | 銘柄: | BMI | モデル番号: | TP-ICU-1A | タイプ: | CE, ISO , OEM | Type: | ICU Ceiling pendant | Use for: | Intensive care Unit, Normal Wards | Material: | High Strength Aluminium Alloy | Certificate: | ISO9001, ISO13485, CE | Folded: | NO | Medical Gas: | Oxygen, Vacuum, Air, etc | Color: | White | ICU ceiling pendants: | 100-150kgs | Brake: | Mechanical or Pneumatic | Warranty time: | 2 years |
包装
| 包装: | polywoodケース一つと各アーム |
仕様

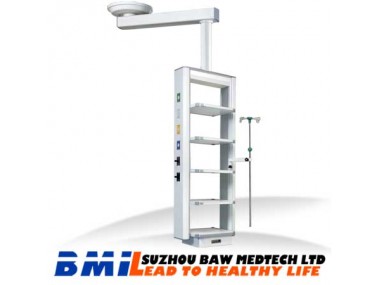

ISO CE Approved Multi-function One Arm Medical ICU Ceiling Pendant
| icu ceiling pendants Specification: | ||
| Model | TP-ICU-1 | |
| Type | ICU ceiling pendants | |
| Working Power: | AC220V,50HZ ,Input Power: 6KVA | |
| Mechanic damper brake wihtout drifting | ||
| Arm rotary radius | 0-340° | |
| Material | High-strength aluminum alloy | |
| Installing mode: | Ceiling mounted,Stable and firm construction | |
| Color: | white | |
| Surface treatment: | Electrostatic coating | Uvioresistant,Anti-aging,Anti-chemical,Anti-collision, |
| Strong adhesiveability, easy-cleaning | ||
| Loading ability: | 100-150kg | |
| Equipment Shelves | Four layers (height-adjustable) | anti-collision design for filleted corner |
| Standard Gas Outlets: | 4*Oxygen, 4*Vacuum, 2*Compressed air | Optional :1. colors and shapes for distinction 2. Using cycle for more than 20,000 times 3. Using Second Sealing technology with |
| 3 status (open, stop, pull), can be repaired while in connect with gas source | ||
| Brake System | Pneumatic brake without drifting,easy moving(compressed air is a must) | |
| Electrical sockets: | 10pcs | 220V, 10A |
| Earth terminal: | 2pcs | |
| Platform | 4PC | |
| Infusion support | 1PC | |
| Drawer: | 1pc | |
| Network port | 1pc | |
| Telephone adaptor | 1pc | |
| Mesh basket | 1pc | |
| Option | 1) instrument shelves, 2)Gas Outlets ,3)Network connector | |
| 4)Telphone connector ,5)Power sockets,6)Grounding terminal,7)Storage basket, | ||
| 8)VGA connector,9)Drip hanger.10)Infusion pump | ||
WHY CHOOSE US ?
- Low price : Our pendant is an integrated system providing all medical gas electrical services, and facilitating
- equipment management. All parts are made by ourselves. We are manufacturer but not agent.
- High quantity :CE & ISO approve
- Max load is 250kg , bigger than others
- Covers A Very Wide: Movement angle: 00-3400 horizontal ;Vertical travel: 690mm
- Optional of medical gas outlet, light, internet outlet, electric outlet ect.
- Parcel shelf can move up and down
- Modern and very quite, high performance motors as well as special spindles are used to realize precise and
- steady movement.
- A new design motor arm with an electrical height adjustment, for loads up to 90KG.
- The stoppers are infinitely variable from 00-3300
- Optional air brake system can be adapted to various safety requirements and construction facilities.
if you have any problems about the product ,you can email us. you are welcome at anytime.
