原産地:	中国(本土)	銘柄:	W & S	モデル番号:	8 in 1 ear temperature gun
タイプ:	温度計	Resolution:	0.1 c	power source:	3 v DC (CR2032 button battery)

包装

包装:	カートン/cartons

仕様

body thermometer measuring forehead temperature gun



thermometer



Product structure: By the shell, infrared sensor and microcomputer control circuit and the LCD screen. Product scope of application: Is fit for measuring the human body through the body cochlear ear temperature, temperature and room temperature, surface temperature.



notes:

1. Please in 10 °C to 40 °C ambient temperature using this product.



2. Do not use this product for a long time storage in - below 20 °C and 55 °C above or by more than 93% relative humidity environment.



3. More than the normal temperature of the human body measurement data, and consult a doctor. 4. Please place this product Yu Youtong unreachable. 5. This product is a precision instrument, please handle with care, to avoid product malfunction caused by the impact, drop, do not use the product in the water. 6. If product does not work, please contact a dealer or after-sales service. 7. In accordance with the requirements for waste battery recycling processing, please replac the battery. Warning:  1. The temperature measurement, the ear thermometer in the ear canal placed time not too long, lest affect the temperature measurement result.2. The user can't continuously measuring temperature, keep the probe inserted a child in the ear canal, can cause ear temperature rise, make the measured data of each different. After each test measured again after a set period (more than 10 seconds is best), which can guarantee the accuracy of the measured temperature.3. Please don't ear temperature measurement when it just wake up, sleep by ear temperature may rise, lead to temperature is not allowed. 4. When the temperature measuring probe inserted in the direction of the eardrum as deeply as possible, when the ear canal, can light up or outside after pulling ears, gently put your ear. 5. When measuring, away from the emission of electromagnetic wave equipment such as mobile phone, please.6. In the rain, exercise, work, and after taking a bath, immediately measure may result in inaccurate, please interval measured again for a period of time.7. When the battery is low measured value may be inaccurate, then please change the battery.8. Temperature measurement, temperature sensor shall be the object of 1 cm distance.9. Not the correct use of ear thermometer, may result in inaccurate measurements Feature set: When the need for feature set, boot, open the battery back cover, press "set" button to enter setting mode, press the set key to choose the function of the need to set up in a row, wait for 2 seconds to enter setup submenu function, press "power/measurement" to set specific function. Function description:

name	functions	description
F-1	°C/°F conversition	Unit of temperature setting
F-2	Temperature/temperature conversion	Ear temperature/temperature mode selecion ; A display BODY of ear temperature/forehead temperature mode ; According to FACE by material/ear temperature mode
F-3	clock setting	Set the clock to show at room temperature, the clock alternating with room temperature display, time interval for 30 seconds
F-4	Adjust the temperature deviation	According to the specific user's skin is different, emit infrared intensity difference, when you have deviation to measure temperature, can be set up by this function deviation, the unsigned after confirm to enter submenu represent positive, - on behalf of the negative number, range of plus or minus 3 °C, a resolution of 0.1 °C (only applicable to the forehead temperature measurement mode)

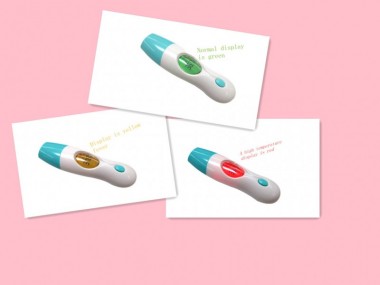

F-5	Orange backlight setting range	Orange backlight range, the default value is 37.5 °C to 37.9 °C, range can be set for plus or minus 3 °C
F-6	Red backlight setting range	Red backlighting, the default value is 38.0 °C to 42.9 °C, range can be set for plus or minus 3 °C when orange backlight set values with red backlight set values overlap, red is preferred.





Cleaning and maintenance:  1. In front of the sensor probe is extremely sensitive parts, in order to accurately measure temperature, please keep clean and avoid damage. Do not touch with the hand (* thermal probe *) 2. This product without the use of disposable earmuffs, just before and after each use it by a swab with alcohol or soft cloth gently wipe the surface of detector, after being alcohol completely dry, can be measured again. Do not use paper towel to wipe. 3. Please use soft cloth to wipe the ear thermometer casing, please do not use with corrosive cleaner is wiped. 4. Do not use this product is placed in the sunlight, dust and pollution of the environment. 5. Please send the product is placed in normal room temperature, if placed in the outdoor environment, its temperature should be between 10 °C to 40 °C, 30 minutes from the displacement of indoor outdoor please placed before use.
