| 原産地: | 中国(本土) | 銘柄: | ハウエルの整形外科のオペレーティングテーブル | モデル番号: | He-608 | タイプ: | の整形外科のオペレーティングテーブル | 特性: | 整形外科の外科手術用の器具 | マニュアル: | 建て- 腎臓ブリッジ | 卓上長さ: | 2000ミリメートル | 卓上幅: | 500mm | 卓上幅( サイドレール): | 560ミリメートル | 高さ調整: | 700mm-1000mm | リフト/右チルト: | 20° | トレンデレンブルグ/逆トレンデレン: | 30° | バックプレート( up/ダウン): | 75°/40° | フットプレート( up/ダウン): | 30°/90° | フットプレート( 水平): | °の |
包装
| 包装: | 木製ケース |
仕様

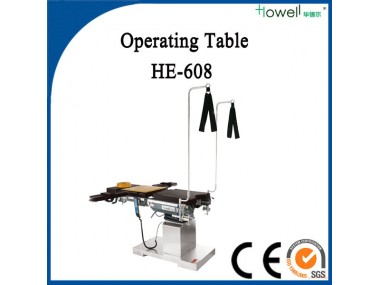

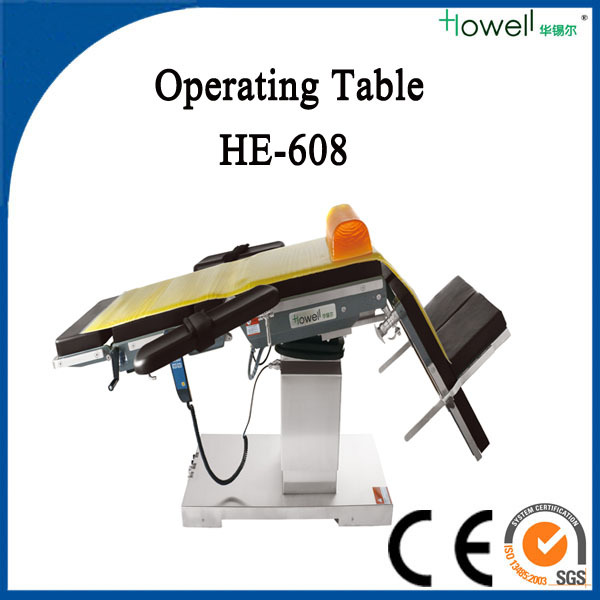

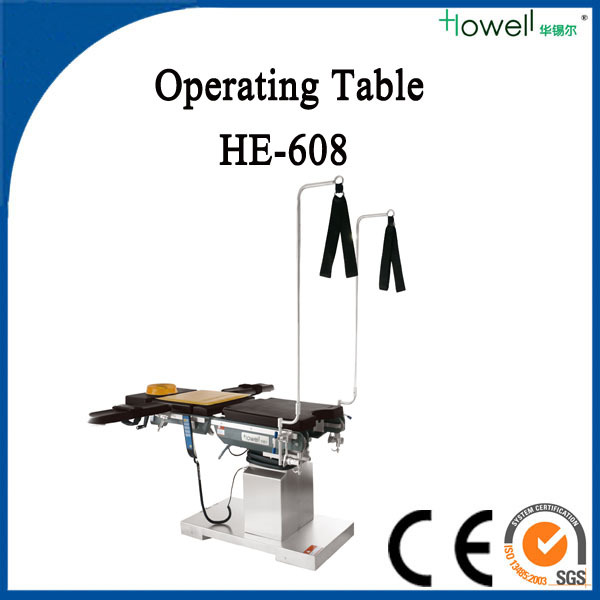

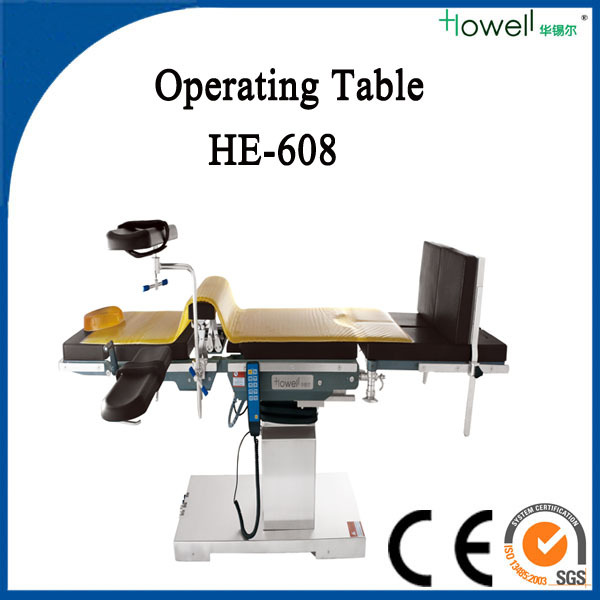

HE-608 Plastic Surgery Operating Table Alibaba Feature:
*It applies a micro-computer control and adopts advanced electro-hydraulic drive technology instead of traditional electric pushing rod drive technology,realizing more
accurate body positions as well as more uniform and smooth running speed.;
*Main parts of the hydraulic system adopt imported parts,so that it is more reliable in whole performance and durable in use.;
*Mattresses of the whole series of products adopt one-step molding technology of medical polyurethane which has features such as insulation,fire resistant and
waterproof,etc.It conforms to safety standards and the surface is seamless,antibacterial and easy to clean.
Specification:
| Items | Parameters |
| Tabletop Length | 2000mm |
| Tabletop Width | 500mm |
| Tabletop Width(with side rails) | 560mm |
| Height Ajustment(without mattress) | 700mm-1000mm |
| Trendelenburg/Reverse Trendelenburg | 30° |
| Lift/Right Tilt | 20° |
| Manual Adjustment of Head Plate(Up/Down) | 50°/90° |
| Back Plate(Up/Down) | 75°/40° |
| Foot Plate(Up/Down) | 30°/90° |
| Foot Plate(Horizontal) | 90° |
| Longitudinal Slide of Tabletop | |
| (/S model Slide in single direction) | 300mm |
| (/S model Slide in both directions) | 500mm |
| (300mm to head end and 200mm to foot end) | |
| Manual Adjustment of Built-in Kidney Bridge | |
| (/K model) | 0-120mm |
| Note:/S model silde in single directin and slide in both directions are optional |
Application:
