| 原産地: | 中国(本土) | 銘柄: | Neurocare | モデル番号: | NC-FA343 | タイプ: | 麻酔の装置及び付属品 |
包装
| 包装: | カートン |
仕様

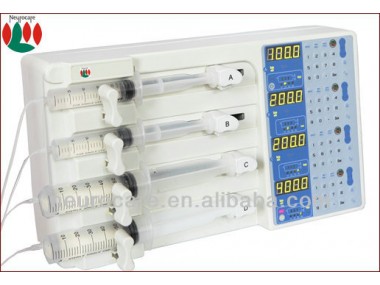

Product Description
Features:
l User friendly, easy and customized operation
l Double MPU to ensure system security
l Manual bolus but automatical antibolus to increase patient safety
l Automatically recognize the syringe type--10ml/20ml/30ml/50ml/60ml,any brand after calibration
l Up to 8 hours battery back up for single channel at the rate of 5ml/h, 6 hours for double channel, 4 hours for four channel
l Ideally suitable for OT, ICCU, NICU, PICU etc
Specification:
Model Parameters | NC-FA343 |
Channel | Four |
Compatible syringe | 10ml 20ml 30ml 50/60ml |
Infusion rate | 0.1-400ml/h, (50ml/60ml) |
0.1-200ml/h, (20ml/30ml) | |
0.1-99.9ml/h, (10ml) | |
Purge rate/bolus rate/top infusion rate | 400ml/h;(50ml/60ml) |
200ml/h;(20ml/30ml) | |
99.9ml/h;(10ml) | |
Volume limit | 0-999.9ml,Step by 0.1 |
Accuracy | +2% |
Infusion Step by | 0.1ml/h |
Visible & audible alarms | Syringe dislocation, Occlusion, Near empty, Pause overtime, Low battery, VTBI completion, Power cord falling off, Malfunction, Incorrect syringe type, Electrical circuit jam |
Occlusion pressure: high | 20ml,30ml,50ml/60ml Syringe Space: 90kpa+30kpa 10ml Syringe Space: 100kpa+30kpa |
Occlusion pressure: low | 20ml,30ml,50ml/60ml Syringe Space: 50kpa+30kpa 10ml Syringe Space: 70kpa+30kpa |
KVO rate | 0.1ml/h+0.02ml/h |
Power | AC: 100v-240v 50HZ/60HZ DC: 12V |
Pause overtime alarm | 1min50s-2min |
Appalled standards | ISO 13485 & CE Certified |
Dimension | 425mm(L)*125mm(W)*245mm(H) |
Weight | 5.2kg |
