| 原産地: | 中国(本土) | 銘柄: | Weisai | モデル番号: | WS-SP30 | タイプ: | 麻酔の装置及び付属品 | Injection precision: | mechanical accuracy: ± 1% accuracy syringe contains: ± 2% | Using syringe Specification: | (international standard syringes) 10mL, 20mL, 30mL, 50mL and 60mL | Size: | 320W 118 H 120Dmm |
包装
| 包装: | 320( w) ×118( h) ×120( d) mmのカートン( または応じてあなたの必要性に) |
仕様

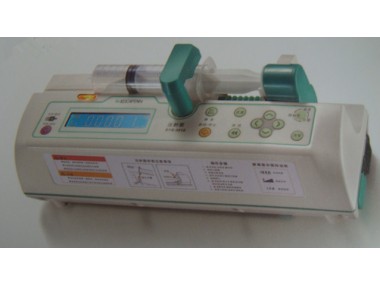

syringe pump WS-SP30
Special
1.Perfect, simple operation
2.Expertise drive mechanism, the injection process more stable
3. 16 step motor drive technology, the more sophisticated injection speed
4. 11 sensors, real-time full-intelligent detection, more reliable infusion
5. Automatically downgrade pressure pipe plug to prevent excessive injection
Technical Parameters:
Product name | syringe pump |
Power | AC power supply:AC100-240V 50/60Hz external DC power supply: DC12V built-in battery:: Lithium continuous use time ≥8 h |
Using syringe Specification | (international standard syringes) 10mL, 20mL, 30mL, 50mL and 60mL |
Injection speed setting range | 0.1-300.0mL/h,(10mL) 0.1-600.0mL/h,(20mL) 0.1-900.0mL/h, (30mL) 0.1-2000.0mL/h,(50/60 mL) |
Total injection range display: | 0.1-9999.9mL |
Injection precision | mechanical accuracy: ± 1% accuracy syringe contains: ± 2% |
Fast forward operation | 300-1500mL/h |
KVO rate | 0.1-2.5mL/h |
Blocking level | 1. 300±100mmHg (40.0±13.3kPa) 2. 500±100mmHg (66.7±13.3kPa) 3. 800±100mmHg (40.0±13.3kPa) |
Alarm | injection will be completed, completion of the injection, an empty syringe, injection blocking, no battery, low battery, battery power shortage, no AC power supply, no external DC power supply, syringe loose, past operations, injection pump self-test, running automatic fault diagnosis alarm, speed is invalid, limit the total amount of less than or equal, |
Special features | then the alarm function, event logging, blocking level adjustable alarm volume adjustable, KVO adjustable speed, power switching function, a variety of injection modes |
Ambient temperature | Temperature:5°C 40°C Relative humidity:15%-80%,non-condensing Atmospheric pressure: 70.0 kPa-106 kPa |
Storage Environment | temperature:-20°C-55°C Relative humidity::10%-93% non-condensing Atmospheric pressure:22.0kPa-107.4kPa |
Classification | Class 1 Type CF IPX 4 |
size | 320(W)x 118 (H) x 120(D)mm |
Weight | 1.9 kg (including battery) |
Safety standards | GB9706.1 (IEC60601-1) Medical electrical equipment Part I: General requirements for safety GB9706.27 (IEC6060102-24) Medical electrical equipment - Part 2-24: infusion pumps and controllers for the safety requirements for medical electrical equipment YY0709-2009 (IEC60601-1-8) Medical electrical equipment - Part 1-8: General requirements for medical electrical equipment safety - Collateral standard: Medical electrical equipment - Medical preliminary detection system alarm systems and guidelines |
Three kinds of modes for a variety of syringes
Dual CPU applications, the injection pump operating data to calculate a more accurate and timely .
