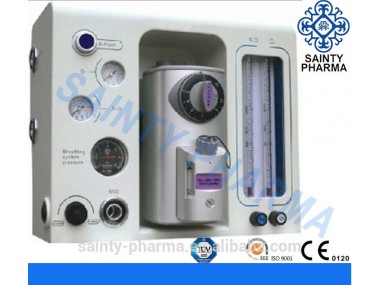

CE Approved Portable Medical Anaesthesia Machine (SP902C)

Our main products line includes  anaesthesia and various medical equipments (apparatus), medical disposable items and Dental products, Surgical Equipment, Laboratory Equipment etc.

Office based Anesthesia (OBA)

MRI scan rooms Dental anesthesia Missionary off-shore anesthesia Remote locations in hospitals outside O. R. Disaster scenes and mass casualty incidents Front-line military hospitals Shipboard, aircraft Any location wher size, mobility and portability are important

TECHNICAL PARAMETER:

1. Working mode: Manual

2. Patient scope: From Pediatric to Adult (3kgs over)

3. Tidal volume: 20-1500ml

4. Working pressure: O2: 0.3_0.4Mpa, N2O: 0.3_0.4Mpa

5. Flowmeters: 2 tube 2 gas flowmeter; O2 range: 0.1-10L/min, N2O range: 0.1-10L/min.

6. O2 and N2O linkage device (ORC system), FiO2 ≥ 25%

7. APL valve adjustment range: 0.5-6.0Kpa

8. O2 Flush: 30-60L/min

STANDARD CONFIGURATION:

Main Unit; Vaporizer; Universal standard CE marked with 2 models optional. A

gent type include: Halothane, Isoflurane, Enflurane and Sevoflurane. Standard Accessories of breathing tubes for connecting and Mask etc. In-built CO2 absorber Canister with capacity of 2kg

OPTION ConFIGURATION AND SPECIFICATION:

1, Trolley

2, Anesthesia ventilator Driven Mode: Pneumatically driven electronically controlled Technical Specifications: Ventilation Mode: IPPV;

Manual Display: Highly LED digital display

Tidal Volume: 100-1800ml I: E Ratio: 4: 1, 3: 1, 2: 1, 3: 2, 1: 1, 2: 3, 1: 2, 1: 3, 1: 4, 1: 5, 1: 6

Frequency: 3-100bpm

Pressure: 0.3-0.5Mpa

Peak Pressure protect: 60cm H2O

Overflow Valve
Power: AC220V± 10%, 50Hz± 1 25W

Monitor Parameters: Vt, Ve (IPPV mode);

Vt, Frequency (Manual mode)

Alarm parameters:

Minimum Ve: 0-50L/min;

Maxmum Ve: 5-99L/min

Minimum Tidal Volume: 50-200L/min;

Maxmum Tidal Volume: 800-1500L/min
