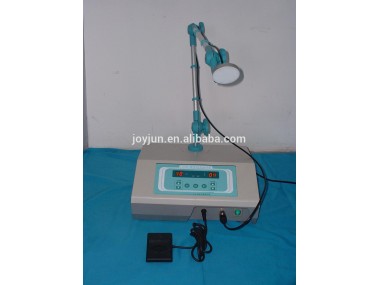

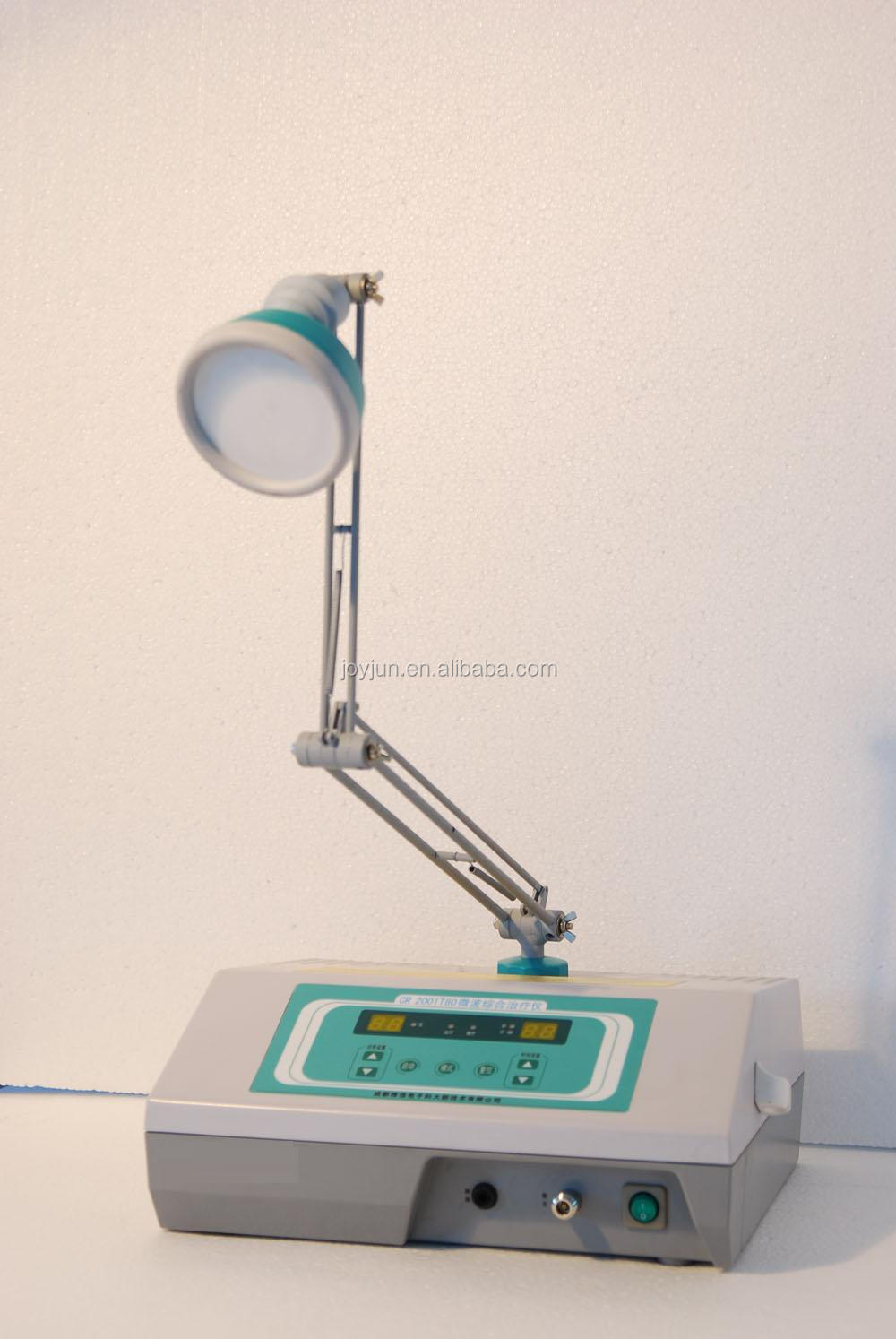

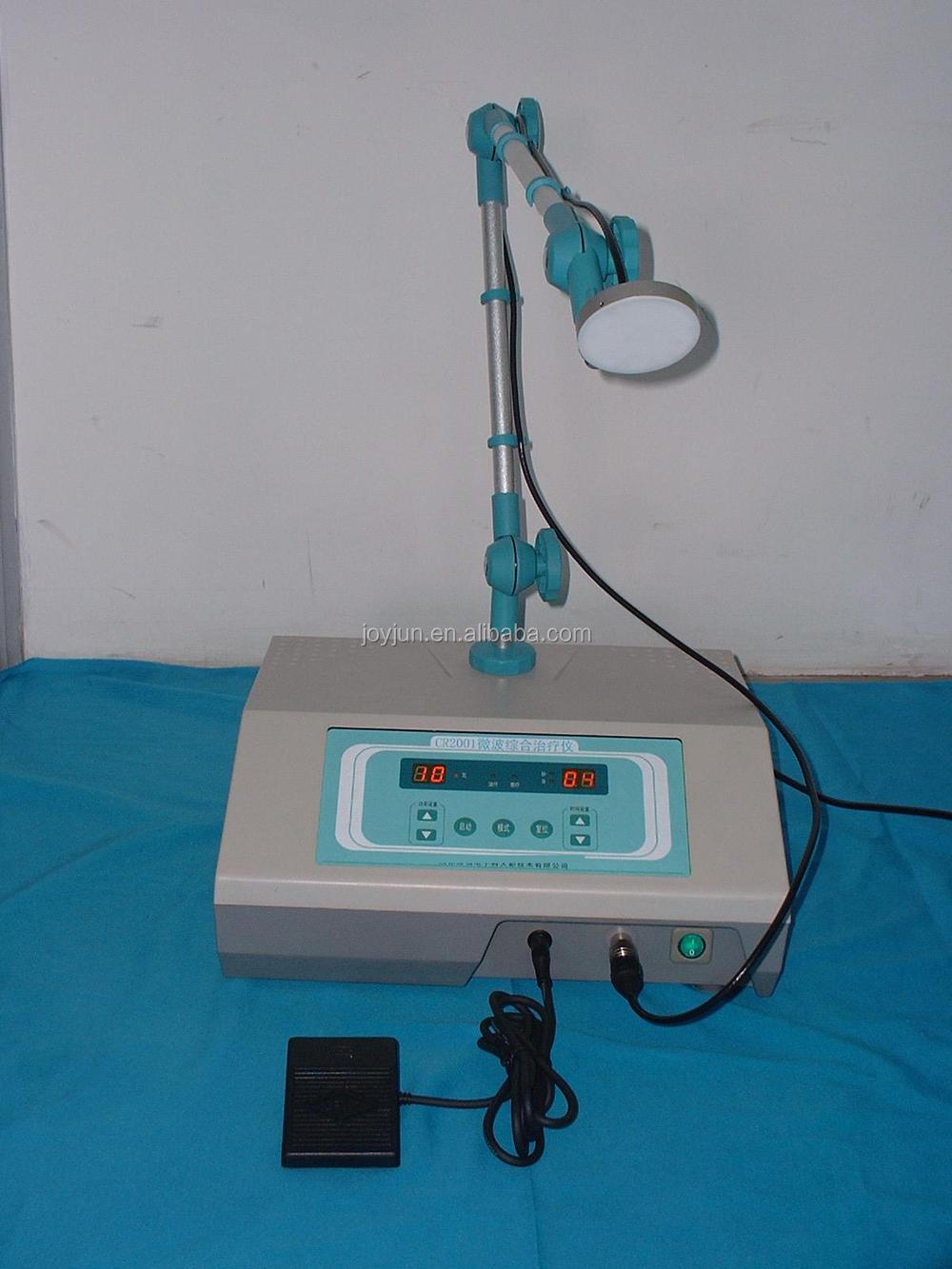

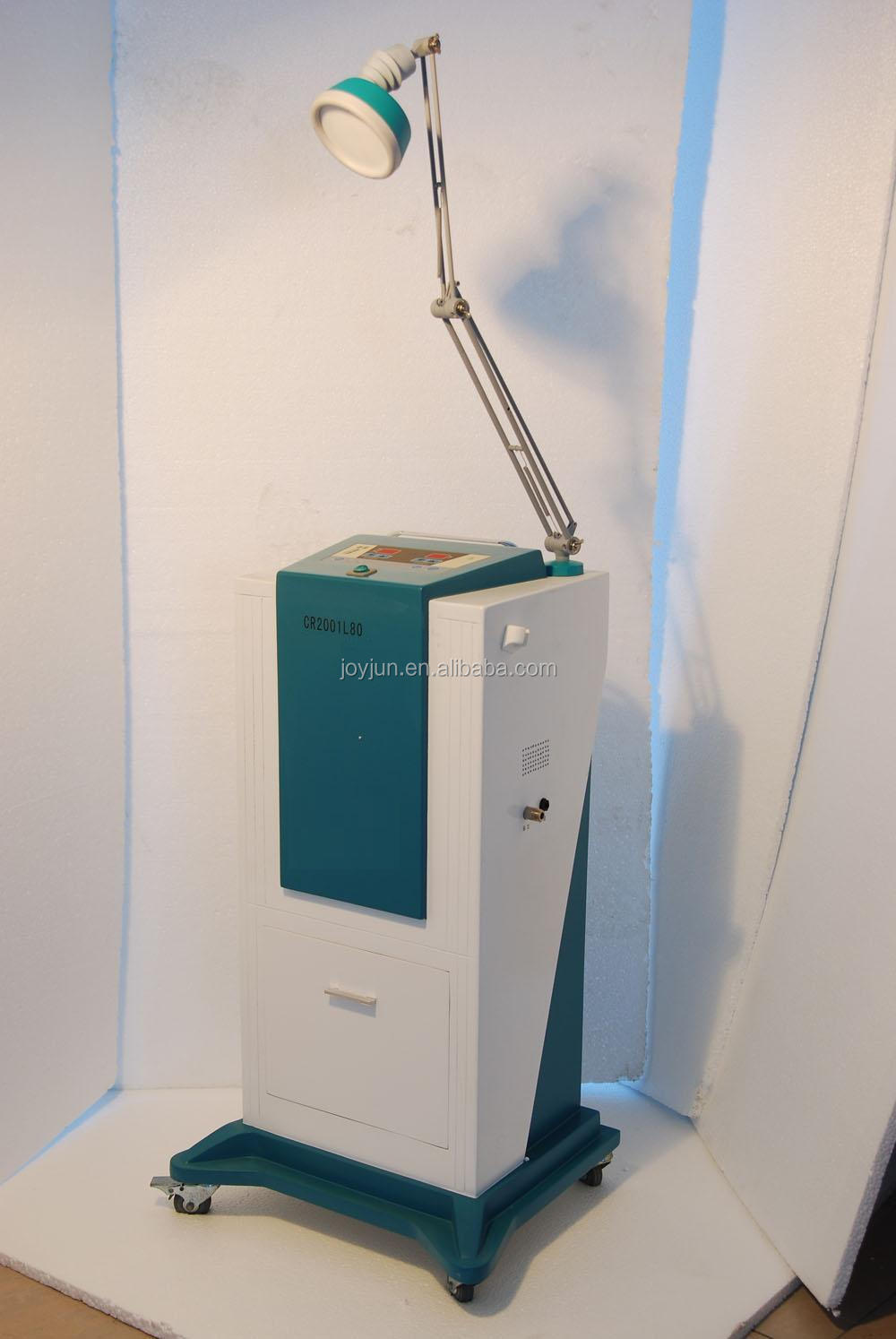

Medical Microwave Physical Therapy Instrument

Microwave Therapy Instrument is a medical device to act on human body with the particular biological effect of microwave for generating non-heat effect and endogeny heat effect. It is broadly used for the treatment and physical therapy in gynecology, otorhinolaryngology, dermatology, stomatology and anal disease.

Scope of application

Applicable for the treatment of hypertrophic rhinitis, rhinorrhagia, chronic phryngitis, internal hemorrhoid, external hemorrhoid, mixed hermorrhoid, cervical erosion, condyloma acuminate, chronic periapical, periodontitis and physical therapy of wound healing etc.

Function Features

High safety: with hi-tech isolation technology, microwave leakage value is far below national safety limit.

Antistick therapy device: special macromolecule coated device to effectively prevent tissue sticking.

Wide range voltage technique: stable output can be kept under unstable power supply(176~264V).

Long-life Magnetic Control Pipe: High Effective Long-life Magnetic Control Pipe, with service life more

than 30 thousand hours.

Rapid Initiation: Large-scaled IC (built-in CPU) Control

Output Supervision: when output is overload, the instrument would automatically close the microwave

output function so as to protect the safety of doctors, nurses and patients.

Humanity Operation:touched button, macroscopic digit display.

Technical parameters

Ambient Temperature: 5°C-40°C,can be used continuous.

Working Frequency: 2450MHz±50MHz

Power Output: Treatment mode: 5W~80W, step can be adjusted, Physiotherapy mode: 5W~80W, step can be adjusted

Timing Range of Timer: Treatment: 1s~99s, Physiotherapy: 1min~30min

Power supply: a.c. 220V±22V,50Hz±1Hz

Surrounding temperature: 10°C~40°C

Relative humidity: 30%~75%

Atmospheric pressure: 700hPa~1060hPa
