製品情報
タイプ: 分割頭部 | ブランド: haide | モデル: モデル番号: f11-125 |
モデル番号:: F11-125 | ドライブ:: モーター | 色:: 緑色または灰色 |
最大トルク:: 20mm | アプリケーション:: 掘削 | 動作速度:: 5200回転 |
保証:: 一年 | 品質: 高品質 | 出荷: 5日 |
毎月の容量: 5000セット |
包装
包装: 紙/木製ケース |
仕様
1.ユニバーサルヘッドを割って2.を分割することができで、 任意の角度で直接、 で- ダイレクト、 または別の方法。

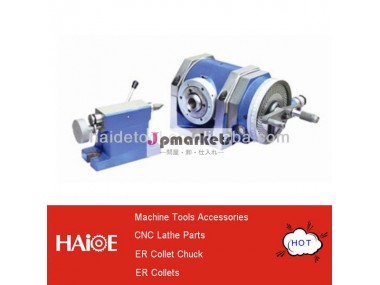

ユニバーサルヘッドを割ってf11-125タイプ、 フライス盤用割出し台
仕様
1.ユニバーサルヘッドを割って
2.を分割することができで、 任意の角度で直接、 で- ダイレクト、 または別の方法。
特徴:
センターが、 ユニバーサルインデックスを行うように設計されている歯切りのすべてのタイプ。 精度は、 分割してでスパイラル単語と高い精度と効率よりも今までには中心面を傾けることができ水平位置からの90度にダウン・ndashする; 垂直から10度、 性向と読むことができるオフで目盛り度。 中心は最高の技術規格に組み込まれており、 工場検査と完全な満足を保証するためにテスト。 比率は1:40へのワームのギア
仕様 | F11 100a | F11 125a | F11 160a | |
F12 100 | F12 125 | F12 160 | ||
Swivel hight mm | 100 | 125 | 160 | |
Swivel angle of spIndle from it's horizontal position ( 上向き) | ・ル; 95・度; | |||
Horizontal position( 下向き) | ・ル; 6・度; | |||
ロタtiNg angle of spindle for one complete revolution of dividing handle | 9・度;( 540 grad; 1'each) | |||
分。 reading of vernier | 10" | |||
Worm gear ratio | 1:40 | |||
Taper of spindle bore | mt3 | mt4 | ||
Width of locating key mm | 14 | 18 | ||
径。 of short taper of spindle nose for mounting flage mm | 41.275 | 53.975 | 53.975 | |
Hole numbers on index plate | 1st plate | 24、 25、 28、 30、 34、 37、 38、 39、 41、 42、 43 | ||
2nd plate | 46、 47、 49、 51、 53、 54、 57、 58、 59、 62、 66 | |||
Change gear | Module | 1.5 | 2 | |
Teeth numbers | 25、 30、 35、 40、 50、 55、 60、 70、 80、 90、 100 | |||
Individual indexing error of the spindle for one complete revolution of dividing handle | ±" 45 | |||
Cumulate error at any 1/4 periphery of spindle | ± 1' | |||
最大。 bearing kg | 100 | 130 | 130 | |
Net weight kg | (63)67 | (104)110 | (120)130 | |
Gross weight kg | (75)79 | (120)126 | (139)149 | |
Case dimensions mm | 616*465*265 | 635*530*310 | 710*535*42 |
取引条件
1.リードタイム: 2- 7日以内に、 3日以内のサンプル
2.支払: t/t、 エスクロー、 ウェスタンユニオン
3.一定の割引は大量に記載して
4.fob青島、 exw用サンプルおよび試験順序
パッキング
1.詰めは新聞に/プラスチックケース
2.パックすることができお客さまに応じて詳細なお問い合わせ
