製品情報
| タイプ: 麻酔の装置及び付属品 | 銘柄: readeagle | モデル番号: 牡羊座- 2200 |
| 原産地: 中国(本土) | プロパティ: 腹部手術機器 | 呼吸モード: ippv、 simv、 ため息、 マニュアル、 スタンバイ、 デモ |
| 一回換気量: 50ml~1600ml | ディスプレイ: 10.4tftカラー画面 | 麻酔薬気化器: 高精度な2気化器 |
| o2チューブ: 0リットル/min~1l/min~10l/min。 |
包装
| 包装: カートン153cm73センチメートル80センチメートルxx、 木製ケース |
仕様
1.麻酔器( 牡羊座2200) 2.呼吸モード: ippv、 simv、 ため息、 マニュアル、 スタンバイ、 デモ

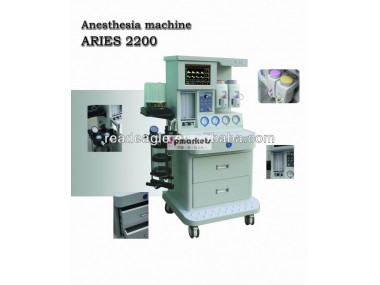

Anesthesia Machine (Aries 2200)
Applications: | |
The Anesthesia Machine which is researched and produced by the Manufacturer Readeagle is a movable unit integrated with anesthesia and ventilation, which could be applied to closed anesthesia, semi-closed anesthesia, and semi-open anesthesia, and be applicable to Adult / Pediatric inhalation anesthesia, oxygen supply, resuscitation and respiratory management. | |
Specifications: | |
Patient type | Adult, pediatric |
Respiration mode | IPPV, SIMV,SIGH,MANUAL,STANDBY,DEMO |
Display | 10.4” TFT color screen |
Waveform | P-t, F-t |
Tidal Volume | 50ml ~1600ml |
Respiratory frequency | 1~65bpm |
I:E ratio: | 4:1~1:4 |
Inspiration pause | 0~55%Ti |
Inspiration Pressure | 1~60cmH2O |
Trigger Pressure | -20~20cmH2O |
Monitoring parameters | O2 concentration, MV, Respiratory frequency, Tidal volume, Ppeak, I:E ratio, Pmean, |
Pressure alarm setting | High pressure alarm set 1~60cmH2O Low pressure alarm set 0~20cmH2O |
O2 concentration alarm setting | High: 21~99% Low: 21~50% |
MV alarm setting | MV high alarm set 10~99 L/min MV low alarm set 0~40 L/min |
Gas source pressure | O2: 0.25Mpa~0.65MPa N2O: 0.25Mpa~0.65MPa |
O2 + N2O flowmeter | Hypoxic guard system, keep oxygen concentration isn`t lower than 25% |
Oxygen flush | 25L/min~75L/min |
Circle absorber | Safety valve pressure limit: 6Kpa Good air tightness, high reliability and minor respiration impedance With Manual/ Ventilation switch |
Physical specification
| Whole machine: Length: 920mm Width: 560mm Height: 1490mm Weight: 125Kg Wheels: 100mm (diameter), 125mm (height), with brakes on the front two wheels |
Environment
| Temperature: Working: 18-36°C Storage: -20-55°C Comparative humidity: Working: 45%-75% Storage: ≤93% Atmosphere: Working: 0.95~1.05 bar Storage: 500hpa~1060hpa, Altitude: Working: 500 to 800 mmHg (3565 to -440m) Storage: 375 to 800 mmHg (5860 to -440m) |
Competitive Advantage: | |
1. Classical multifunctional anesthesia machine, economic in cost, easy in operation, | |
2. Adopting integrated computer-controlled high speed data processing system, with advanced technology and high reliability, | |
3. With 10.4” TFT color screen, the ventilator can display P-t and F-t waveform at the same time, | |
4. Two independent bellows separated for pediatric and adult, | |
5. Classical CO2 circle absorber is with 2 canisters, low resistance, minimum gas leakage, | |
6. Can be upgraded with functions, eg, CO2 Monitor, Multi-parameter Monitor, Anesthesia depth monitor, etc. | |
7. Optional: O2, N2O Yoke device. When main gas supply is failed, the backup gas supply can be automatically started. | |
| |
