製品情報
原産地: 中国(本土) | 銘柄: アラームワイヤー | モデル番号: アラームワイヤー |
タイプ: 猫5e | コンダクターの数: 8 | アイテム: 中国工場最もよい価格の高品質アラームワイヤー |
導体: Bc/tc/cca/ccs | 断熱材: hdpe | ジャケット: Pvc/lszh |
色: オレンジ/blue/グレー/yellow | 申請する: セキュリティ・インストール | サンプル: アラームワイヤー自由のためのサンプル |
認証: Ce/ccc/iso9001/rohs/gmc等。 | 輸送: 土地/海/air | 経験: over25年工場経験 |
包装
包装: アラームワイヤー千フィート/ドラム、 305m/ドラム。 プラスチックドラム/パッキンの内側に木製ドラム: ボックスを引き出す。 包装の外側: carton/オプション。 他の梱包、 顧客の要求として |
仕様
アラームワイヤー1.工場出荷時の価格・高品質2.25歳の経験3.cerohsiso90014.無料サンプル
Product Description
china factory best price high quality alarm wire
1. Detailed Description:
china factory best price high quality alarm wire
1).High quality alarm wire
2).Condutor material:TC/BC/CCC/CCA/CCAM
3).Good service, low noise, high quality and competitives price
Type | alarm wire | |
Standard | TIA/EIA 568A/568B IEEE802.3U/IEEE802.5 ISO 11801 EN 50173 | |
Conductor | Material | Solid Bare Coppe |
Diameter | (1/0.50±0.01mm) | |
Construction | 4*2*0.50mm | |
Dielectric | Material | HDPE New Material |
Insulation Thickness | 0.269±0.05mm | |
Insulation O.D. | 0.975±0.03mm | |
Pair | 4pair | |
Thickness | 0.6±0.1mm | |
Shield | No | |
Ripcord | Yes | |
Jacket | Material | PVC or PE (according to customer orders) |
Overall Diameter | 5.8±0.1mm | |
Suitable For | Indoor | |
Legend(Surface Ink Print) | UTP CABLE 24AWG(according to customer orders) | |
Rated Temperate | -20~+70 Celsius Degree | |
Packing | Packing | 305m/roll,1000ft/roll (according to customer orders) |
Package | Pull easy box, Paper Carton | |
Easy Box Size | 37*37*22cm |
2. Application:
china factory best price high quality alarm wire applicable in:
1).Applicable in multiple wiring structures and multiple transmission media
2).Applicable in the connetion of the end-user equipment and the exit sides
3).These shielded cables are suitable for safe transmission of high-end data,such as military facilities,airports,hospitals,telecommunication and meter-measuring projects

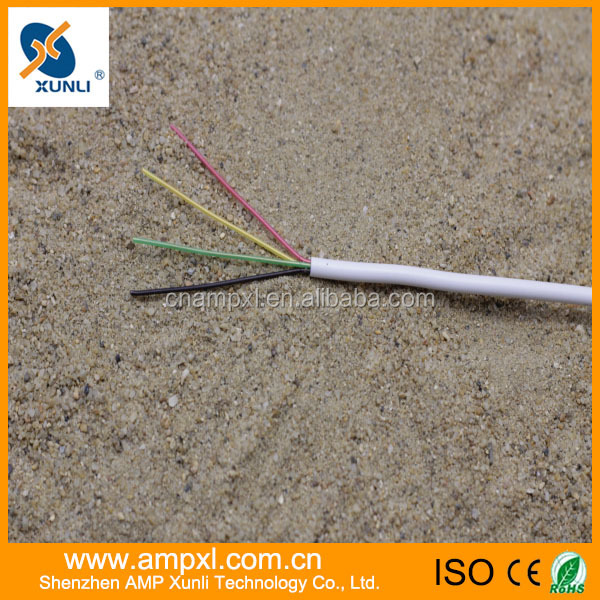

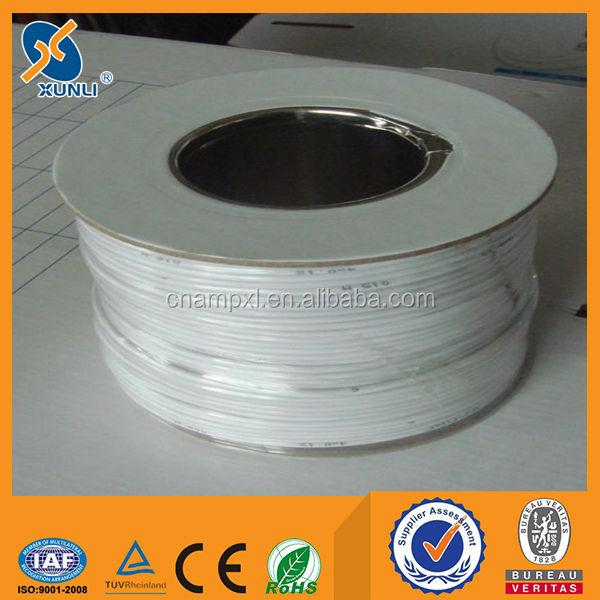

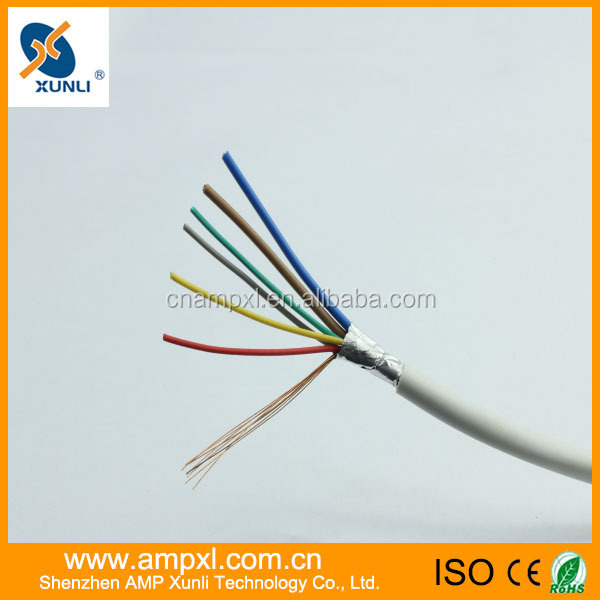

3. Product show - china factory best price high quality alarm wire
1.Are you a factory or trading company?
We are the factory of cable and have more than 25 years experience in the cable field.
2.what's your delivery time?
Within 25 days one 20" container, within 30days one 40 container.
3.Contact details:
Name : Nathan Lee
TEL: +86-188-9836-5816
Skype: ampxl107
Wechat: Nathan686
Q Q: 1519857537
If you have any purchasing plan or any inquiry about cables, feel free to contact me .
