製品情報
原産地: 中国(本土) | 銘柄: Atnt | モデル番号: RK-5E-1002 |
色: 白、bule |
包装
包装: 50pcs 1箱、10箱1の外のカートン |
仕様
1/Competitive質および適正価格。 受諾可能な2/OEMおよびODM。 あなたのための3/Manyモデルは選ぶ。
Specifications

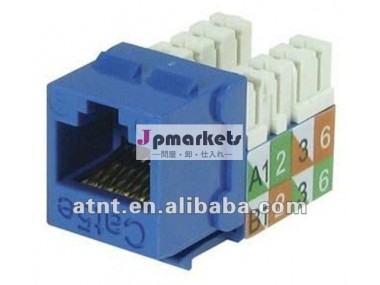

UTP Cat5e Keystone Jack
1)Housing: ABS 94V-0/1/2
2)IDC: PC UL94V-0/1/2
3)PCB: FR-4 1.6 mm thick, 2 layers
UTP Cat5e Keystone Jack
Features
This Keystone Jack is designed for 22-26 AWG solid conductors
Materials
Housing: ABS 94V-0/1/2
IDC: PC UL94V-0/1/2
PCB: FR-4 1.6 mm thick, 2 layers
Contacts: 0.45 mm phosphor bronze with gold plating on contact area
Construction Features
Conductor color code according to T568B and T568A
Contact color and numerical marking
Electrical characteristics
Current rating: 1.5 A max
Voltage rating: 150 V
IDC Contact | 50 micron Gold coated,0.5mm Wire Dia. IDC connection ≥200 times |
Contact Resistance | ≤2.5 M ohm |
Insulation Resistance | ≥1000 M ohm |
Dielectric Strength | DC1000V or AC700V in 1 min.,No Arc & Spark-over. |
Life Span | Plug/Pull ≥1000 times |
Quality Assured
ORDERING
Model no: | Description: | Package: | Dimension: | Gross weight: |
RK-5E-1002 | UTP Cat.5e keystone jack | Neutral package( 1pc/pe bag-- then 500pcs per outer carton). | 35.5X31.5X51CM
| 7.5KG |
We also provide
-keystone jack, cable management,patch panel,lsa terminal block,krone connector, network tools, cat5e/cat6 cable etc.
For more information you can reach us AT cayman(at)atnt(dot)net(dot)cn
