製品情報
原産地: 中国(本土) | 銘柄: dsnxd | モデル番号: キーストーンジャックcat5eftp |
名: キーストーンジャックcat5eftp | 連絡: リン青銅、 金メッキ | idc: リン青銅、 ニッケルメッキ |
ジャックのデザイン: 8p8c | 挿入生活: 回≥750 | 現在のレート: 1.5アンペア最大 |
色: デュアルカラー- コード化された配線ラベル | 電圧定格: 150ボルト | コンタクト直径: 0.45ミリメートル |
ハウジング: 高温熱可塑性 |
包装
包装: のためのパッケージcat5eキーストーンジャック1ピース/bag、 50pieces/インナーカートン、 インナーカートン20/outerカートンインナーカートンのパッキング: 用の小さな袋各部分内側のカートンのサイズ: cartion20*20*11cmourterパッキング: 包装付きテープとプラスチックラップourtercartionサイズ: また、 顧客の要求を受け入れる58*42.5*42.3cm。 |
仕様

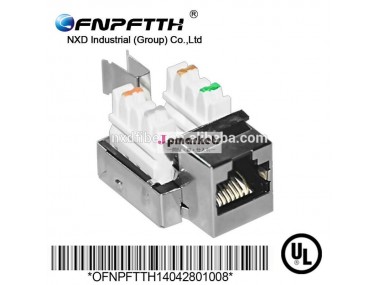

猫。 5erj45キーストーンジャック1.90度キーストーンジャックftp2.と連絡し金メッキ3.8p8c4.ce/rohs/iso9001の認証

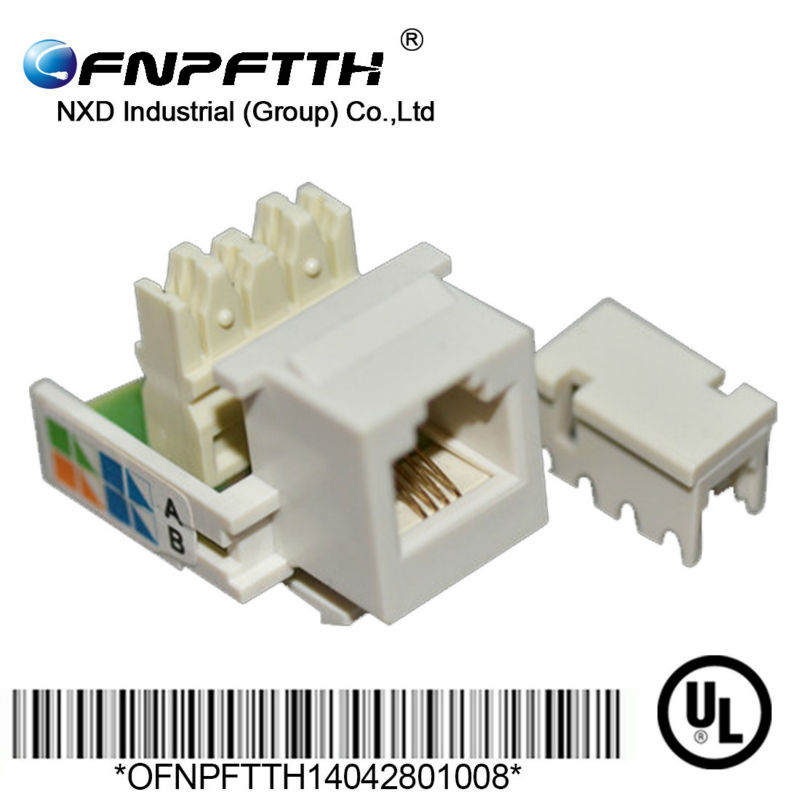

Specification of cat5e UTP keystone jack
Type: 90 degree, UTP, Cat5e,toolless
Meet TIA/EIA-568-A/B Category 6 & ISO/IEC11801 requirements
With cable protective cap to protect IDC and firm the cable termination
High reliability and superior performance
Easy to be terminated, extremely low attenuation loss
Electrical data: according to UL 1863
Voltage rating: 150 Volts
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Housing: PC UL94V-0
Housing: high thermoplastic
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 6 U" to 50 U" gold plated on
contact area
Available in different color
Application Area :
Fit for installing into patch panel and all kinds of wall face plates
Large cafes, senior villas, government projects and companies cabling

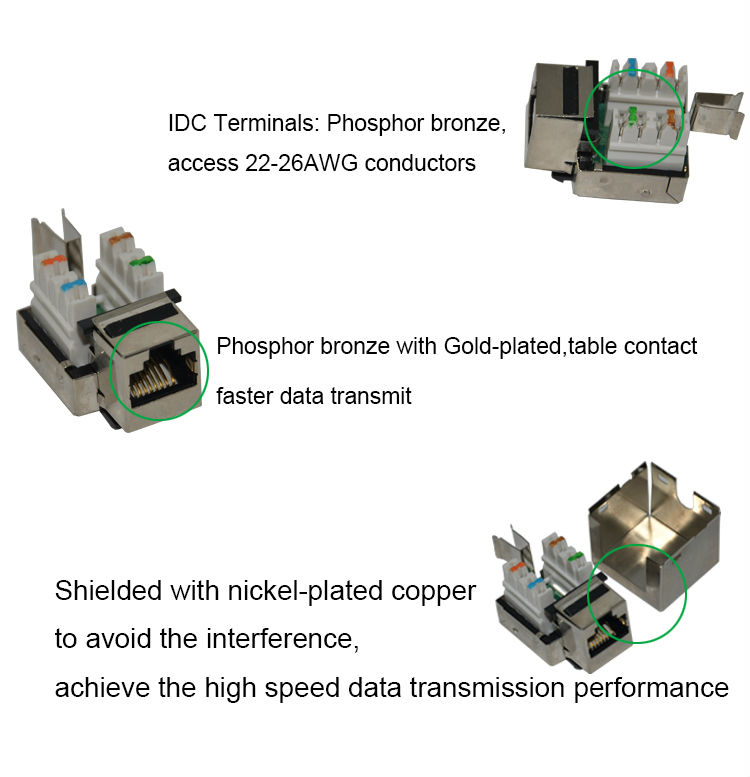

Product detail shows:
