製品情報

原産地: 中国(本土)	銘柄: どれも	モデル番号: Fls-024
最高。 現在: 3a	最高。 電圧: 125vac	機械生命: 上記5e
色: は省略可能	材料: 金属やプラスチック	ハンドルの長さ: は省略可能
機能: オンオフ、 on-off-on、 瞬間的なオンon-off-on	teminalsを修正しました: 溶接することができ1つまたは基板実装	ハウジング材料: pbt
カバー材: ステンレス鋼	耐電圧: Ac1500v/min	接触抵抗: ≤0.02Ω
温度範囲: -25~85°c

包装

包装: トグルスイッチ3a125vacインナートレイ付きインナーボックス。 インナーボックス15/outerカートン

仕様

3a125vacモーダルないトグルスイッチ。: fls-024; 3a125vac、 t125、 1e4; パンネルのサイズ: m6mm防水カバー付き;

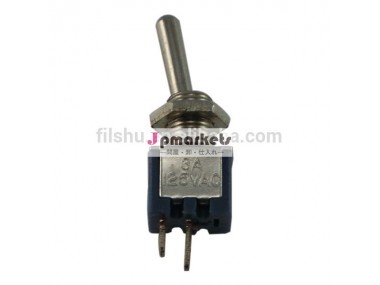

3a 125vac toggle switch



Specifications



1.UL,VDE, RoHS approved..ISO9001:2008 .

2.  0.3A 125VAC, T125,1E4;
  3.Can be On-off,(ON)-OFF-(ON),ON-ON Function.Welding terminals or PCB mounting terminals;

4.Material:base plastic---Nylon 66;Button plastic---PC or Nylon 66;
           Copper parts such as terminal----Copper H62;
           Terminal surface treatment----- tin plating;
           Contact----silver on copper ;
           Spring----Tungsten steel;
           Level handle ----metal .

5.material:Silver Contact,PC,PA66 or metal .

6. The toggle switches are widely used in household electrical equipments and office facility , the multimedia products and the electromotional instruments field etc.

Electrical life                                         1E4

Mechanical life                                 5E4

Contact resistance                         ≤20mΩ

Insulation resistance                             >100MΩ

High voltage resistance                       1500 VAC

Resistance to tracking                           PTI 175

Contact gap DT with centre-OFF         >3mm

Protection type                                         IP20

Ambient temperature                           -25°C...+85°C

Flammability                                             UL94V-0

Heat and fire resistance                             850°C







Company Information:

Filshu Electronics co.,limited has:

1. More than 10 years of experience specially for all kinds of switches ,sockets and Switch and cable assembly;

2.Our own R&D department ,we can accept both ODM and OEM ;

3.Our own QC department who charge of material,production in-line and final products` inspection;

4. Our own labs to test flame resistance/ electrical conductivity/ stability/corrosion resistance/life time

6. More than 300 workers with two shifts,clear responsibility management,high efficient work and fast delivery time.

7. offer 24 hours on-line professional engineer and business service.Just please feel free to contact us if any inquiry at anytime both by email and trademanager.

8.Our company regards “reasonable prices, efficient production time and satisfactory aftersales service” as our tenet. Customers are the first postion.
