製品情報
原産地: 中国(本土) | 銘柄: ACT | モデル番号: ER18505 |
電池のタイプ: LiSOCl2 | わずかな電圧: 3.6V | サイズ: A |
わずかな容量: 4Ah | nominal voltage: 3.6v | continuous current: 100mA |
pulse current: 200mA | certification: UL/UN/CE | weight: 27g |
temperature: -55°C ~ 85°C | Shelf Life: 8 years |
包装
包装: standard package |

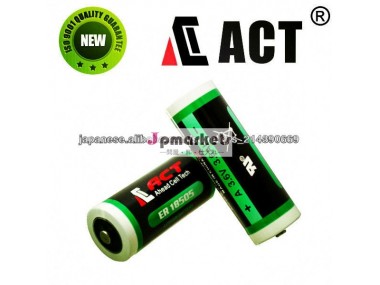

ACT ER18505 lithium battery
1. Products Details:
Model No. | Capacity | Voltage | temperature | Max. continuous current | Max.Dimensions | Weight | height |
ER18505 | 4( Ah ) | 3.6(V) | -55 ~ +85( °C ) | 100(mA) | 18.5( mm ) | 27g | 50.5mm |
..............................................................................................................................................................................................................................
2. Key Characteristics: | 3. Applications: |
1, High and stable load voltage 2, Superior drain capacity 3, Low self-discharge rate (less than 1% after 1 year of storage at 20°C) 4, Stainless steel container 5, Hermetic glass-to-metal sealing 6, Laser welding, infuse from buttom of cell. 7, Non-flammable electrolyte 8, Shelf Life:8 years 9, Cetificate:ISO9001,UN,UL,meet the RoHs requiretment 10, a ISO:9001 and IS0:2004 standard factory, production line very strong. 11, a developing industrail zone with own property. 12, powerful equipment 100% protect storng warranty and high quality. 13, welcome to visit our factory and be our partner, our reseller. 14, around 200 workers of production, make sure large order process.
| --Radiocommunication and other military applications --TPMS --RFID --Alarms and security systems --Beacons and emergency location transmitters --GPS equipment -- Utility meter (water, electricity, gas,heat meter) --Led lighting applications --Others
|
..............................................................................................................................................................................................................................
