製品情報
| 原産地: 中国(本土) | 銘柄: ACT | モデル番号: ER18505M |
| 電池のタイプ: LiSOCl2 | わずかな電圧: 3.6V | サイズ: A |
| わずかな容量: 3.5Ah | nominal voltage: 3.6v | continuous current: 600mA |
| pulse current: 1000mA | certification: UL/UN/CE | weight: 29g |
| temperature: -55°C ~ 85°C | Shelf Life: 8 years |
包装
| 包装: standard package |

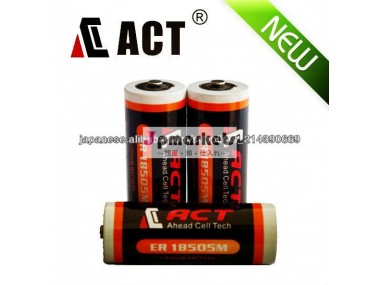

ACT ER18505M lithium battery
Specification
1, high power 3.6v lithium battery.
2, 18.5mm(diameter)*50.5mm(height).
3, A 3.6V/3.5Ah, 29g weight.
4, work at -55°C-85°C.
5, max continuous current 600mA at 20°C.
.............................................................................................................................................................................
♣ Products Characteristics:

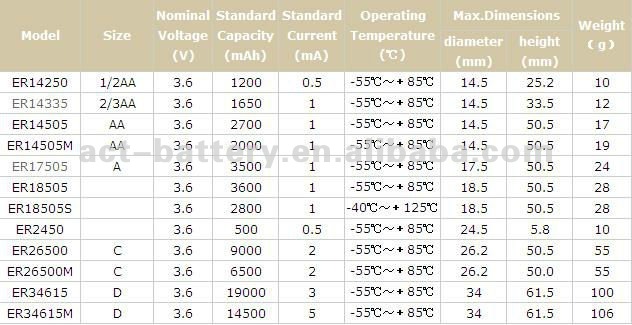

| Model No. | Capacity | Voltage | temperature | Max. continuous current | Max.Dimensions | Weight | height |
| ER18505M | 3.5( Ah ) | 3.6(V) | -55 ~ +85( °C ) | 600(mA) | 18.5( mm ) | 29g | 50.5mm |
Open circuit woltage(At 20 °C): 3.66V
Pulse capability:Typically up to 1000mA
Storage(recommended): +30°C (+86 °F)Max
Operating temperature range: -55 °C ~+85 °C
Avai lable terminal suffix: radial tabs,radial pins,axial leads,flying leads
.............................................................................................................................................................................................................................
