製品情報
| 組合せ: 作り付けGPS, タッチ画面, USB | 車は作る: すべて | CPU: Intel原子330 |
| 原産地: 中国(本土) | 銘柄: DeLong | モデル番号: 小型PC |
| 記憶: 1G RAM DDR2 SDRAM |
包装
| 包装: 1つのカートンの5pcs |
仕様

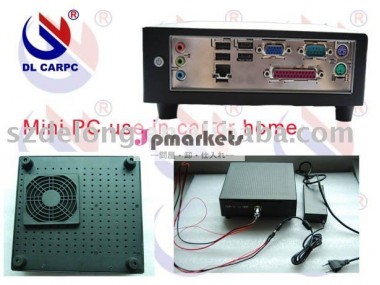

家の使用または車の使用(任意)サポート勝利セリウム/Windows xp/2000/Linuxのための小型PCの/miniコンピュータ945Atom中心2のデュオのPC
Mini pc / Mini computer descriptions:
| Motherboard Specifications | Form factor | Mini-ITX / micro-ATX compatible (6.75 inches by 6.75 inches [171.45 millimeters by 171.45 millimeters]) | |||
| Processor | Integrated Intel® Atom™ processor 330 with a 533 MHz system bus | ||||
| Memory | One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets | ||||
| Support for DDR2 533 / 667 MHz DIMMs | |||||
| Support for up to 2 GB of system memory | |||||
| Chipset | Intel® 945GC and ICH7 | ||||
| Audio | Intel® High Definition Audio in the following configuration: | ||||
| Realtek* ALC662 audio code (2+2 channel HD audio) | |||||
| Video | Intel® Graphics Media Accelerator 950 | ||||
| I/O control | SMSC* LPC47M997 based Legacy I/O controller for serial, parallel, and PS/2* ports | ||||
| LAN support | 10/100 Mbits/sec LAN subsystem using the Realtek* LAN adapter device | ||||
| Peripheral interfaces | Six USB 2.0 ports | ||||
| Two SATA ports (3.0 GB/s) | |||||
| One parallel ATA IDE interface with UDMA 33, ATA-66/100 support | |||||
| One serial port | |||||
| One parallel port | |||||
| PS/2* keyboard and mouse ports | |||||
| Expansion capabilities | One PCI Conventional* bus connector | ||||
| BIOS | Award BIOS | ||||
| Operating System | Windows 2000/XP, Linux, Win CE/Xpe | ||||
| Operating Humidity | 0% ~ 95% (relative humidity; non-condensing) | ||||
| Form Factor | 170mm*170mm | ||||
| Other information | CPU | 1.66GHz | |||
| RAM | 1G RAM DDR2 DIMM x1 , the max to 2GB. | ||||
| disk driver | 120G 2.5inch mini disk, can be up to 250GB. | ||||
| power supply | supply delay shutdown time and start time | ||||
