製品情報
| 原産地: 中国(本土) | 銘柄: yuheng | モデル番号: alm |
| 使用法: 壁 | 材料: ガラス | 形: 浮遊物 |
| カラーバックの絵: グレー、 緑、 白、 赤、 青 | バックの絵層: シングルとダブル | ガラス材料: 板ガラス |
| 技術: マグネトロンスパッタリング | 反射層コーティング: アルミコーティング | 厚さ: 1.8mm |
| サイズ: 600*900、 610*914、 1220*914、 1200*900、 等 |
包装
| 包装: 海にふさわしい木での梱包インターリーブ紙シートの間に |
仕様
1.滑らかな表面ガラスミラー2.湿っ- 証拠および耐水性3.マグネトロンスパッタリング4.優れた光学性能
Product Description
Glass Types: | Sheet glass mirror,Float glass mirror |
Thickness: | 1.7mm/1.8mm/2.0mm/2.7mm/3mm/3.5mm/4mm/5mm/6mm |
Size: | 18301220 1220914 1200900 610914 600900 20001500 24401830 22001650 etc. |
Delivery Time: | 30 days after receipt of deposit or LC |
Payment | 30% TT deposit and 70% before delivery,or LC |
Back Painting | White,Grey,Green,Red,Blue |
Yuheng Glass mirror is made by Magnetron Sputtering Technique,using quality glass and paintings.By magnetron sputtering technique,the coating layer is well distributed,make the mirror more bright and the back painting as well more even,no pin hole and visible flaws.
It is the most advanced technique in mirror-making,that has much larger outcome than the old technique:Aluminum Vacuum Evaporation Coating and the quality is much better.
Magnetron sputtering is a plasma coating process wherby sputtering material is ejected due to bombardment of ions to the target surface. The vacuum chamber of the PVD coating machine is filled with an inert gas, such as argon. By applying a high voltage, a glow discharge is created, resulting in acceleration of ions to the target surface and a plasma coating. The argon-ions will eject sputtering materials from the target surface (sputtering), resulting in a sputtered coating layer on the products in front of the target.
Q:What is the difference between Magnetron Sputtering and Aluminum Evaporation?

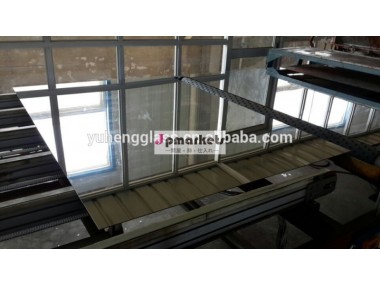

A:The Magnetron Sputtering can do all procedure in making mirror automatically.All we need is to upload the glass in the beginning and download the mirror in the end.Then it can be packed in wooden case immediately.The mirror is coated,back painted and dried in one production line,no need to be dried in the air.
Compared with Aluminum Evaporation technique,the Magnetron Sputtering Mirror is more even on the coating,much better performance on the back paintings cause under the Aluminum Evaporation,the pin hole and flaws may occur a lot when drying in the air.Also Magneton Sputtering Mirror have no problem of finger print that often occurs by the old technique.
Q:Why choose Sheet Mirror from Yuheng Glass?
A:Yuheng glass Co.,ltd is nearly the only one factory that can produce double back painting mirror for the thickness below 3mm.Our quality is much better than that produced by old technique but the price is equal.
