製品情報
| 原産地: 中国(本土) | 銘柄: carbinox | モデル番号: Kb-hl90a |
| 耐腐食性: 高 | メンテナンスコスト: 低 | ライフサイクルコスト: 低 |
| 強度: 高 | 表面仕上げ: オプション( ミラー、 マット、 起毛等。) |
包装
| 包装: に1個非- 不織布バッグ、 の10ピースのウッドケース。 個で、 22040 hq |
仕様
1.材料: ステンレススチール複合パイプ( carbinoxチューブ) 2.最高品質競争力のある価格で3.つや消し仕上げ
Specifications:
1.item number/model: KB-HL90A

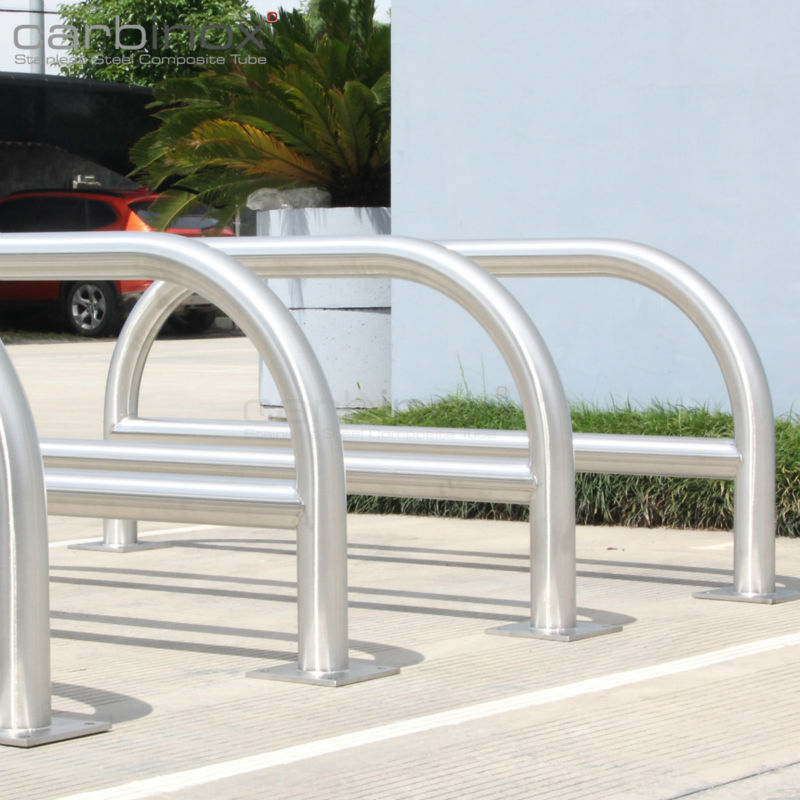

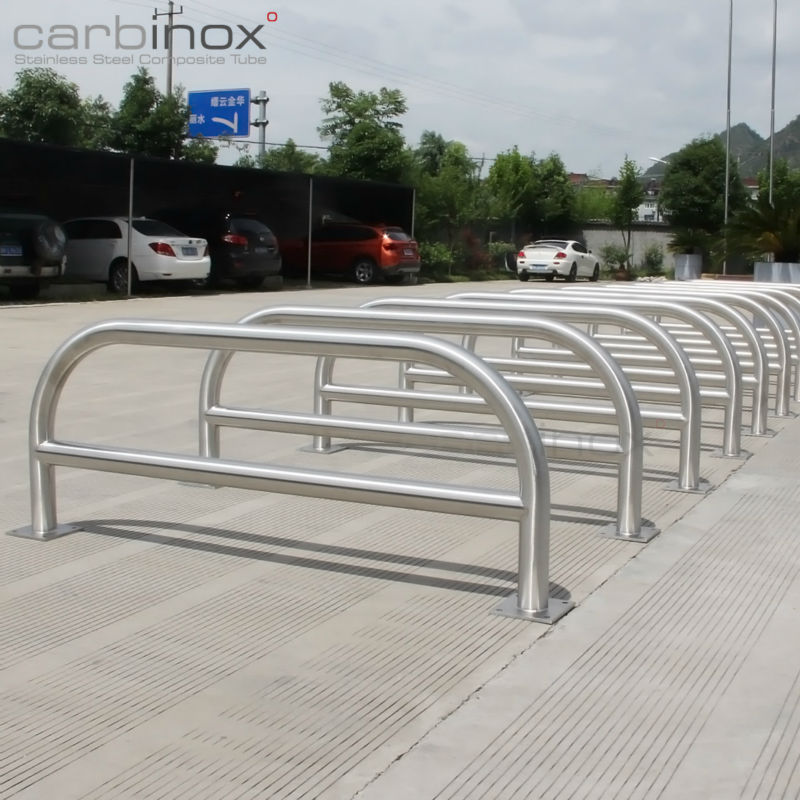

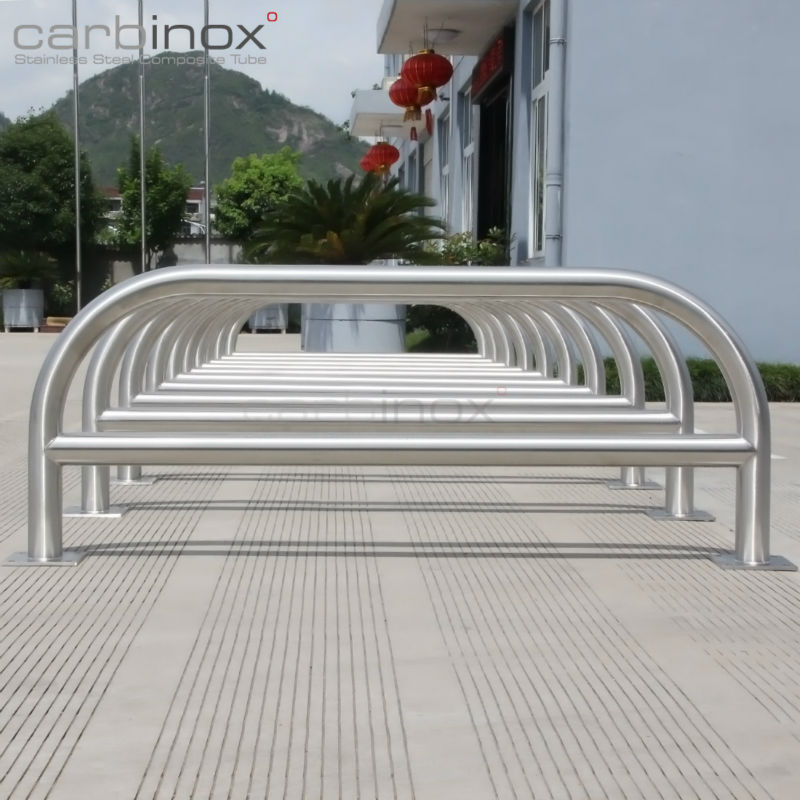

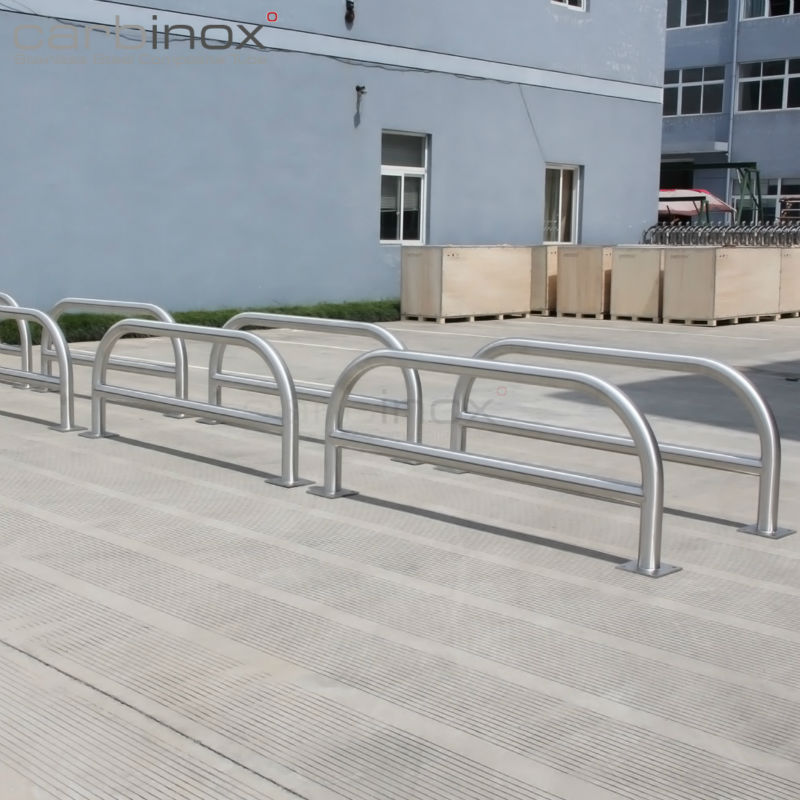

2.Model name: stainless steel parking barriers
3.Materials: steel tube/stainless steel tube/carbinox tube
4.Surface finish: Mirror/brushed/power coated
5.Diameter: 90mm/102mm/114mm/128mm/130mm/140mm/159mm/168mm/219mm
6.Wall thickness: 2mm*10mm
7.Length/Hight/Width: 2000mm*1000mm*90mm
8.Accessories:
Material | 304:0cr18ni9, 0cr17ni8 201:1cr17mn6ni5n,1cr13mn9ni1n 316:0cr17ni12 or as customer’s request |
Size(round pipe) | 9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6, 114.3, 127, 133, 159, 168, 219 mm or customized |
Thickness | 0.24-3 mm |
Length | 6m or according to customer’s request |
Outer diameter | 6.35-219mm |
Tolerance | Outer diameter :±0.2mm |
Thickness :±0.02mm | |
Length :±0.5mm | |
Process method | Code down, annealed with nitrogen protection, ultrasonic,automatic shape, polished |
Finishing | A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing for one pipe) |
Installation Options:
1.Option A: Above ground
2.Option B: Below ground
3.Option C: Removed
Materials Comparison:
materials | Steel | Carbinox | Stainless steel |
Corrosion resistant | low | high | high |
Strength | high | high | high |
Weatherproof resistance | bad | good | good |
Maintenance cost | high | low | low |
Appearance | common | perfect | perfect |
Adaptability | bad | good | good |
Lifetime | short | long | long |
Price | cheap | cheap | expensive |
Carbinox:
Carbinox, as a symbol brand of kylight, With the remarkable quality, the products sells in distant markets domestic and foreign, won the broad customers approval and the praise.
Applications:
1.Handrail and Balustrade
2.Office and outdoor furniture
3.Bollards and Barriers
4.Lighting columns and architectural products
5.Water/Gas/Petroleum transportation pipe
Case:
Main Chemical Composition:
Material | C | Si | Mn | P | S | Cr | Ni | |
Outer | SUS304 | 0.07 | 1.0 | 2.0 | 0.035 | 0.03 | 17.0-19.0 | 8.0-11.0 |
SUS316 | 0.08 | 1.0 | 2.0 | 0.035 | 0.03 | 16.0-18.0 | 10.0-14.0 | |
Inner | Q195 | 0.06-0.12 | 0.3 | 0.25-0.5 | 0.045 | 0.05 | —— | —— |
Q235 | 0.12-0.22 | 0.3 | 0.3-0.8 | 0.045 | 0.05 | —— | —— | |
Main Chemical Composition:
Mecchanic Property | Tensile strength 520Mpa | |
Yielding strength 205Mpa | ||
Extensibility 40% | ||
Processing | Flattening | The pipe specimen diameter compressed to diameter 1/3, |
Flaring | The top taper is 60°, The pipe specimen diameter expanded | |
Bending | The bending angle is 90°,Radius of bend is 3.5 times | |
Product Inspection:
Surface | The surface roughness is not less than Ra1.6 |
Appearance | Bending curvature 2.5 |
Composite tube shall be no obvious torsion | |
Composite pipe end shapes should be vertical with the pipe axis, | |
Composite pipe substrate should be clading compact,symmetrical. |
Sample-making:
3-10 days for different samples.and it takes 3-7 days transit time to send the sample to you.
Brand/Logo-print:
