製品情報
| 原産地: 中国(本土) | モデル番号: zj30 |
包装
| 包装: 国際標準付きカートンパッケージ |
仕様

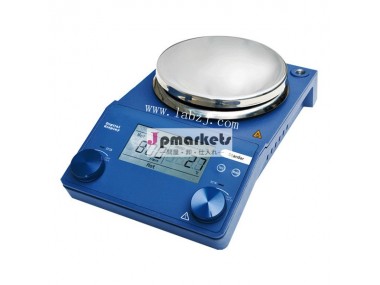

LCD display ,with RS232 computer communication ports,Stainless steel plate,high accuracy of temperature and speed
Product Description(1)It is easy to use and has humanized control system.
With RS232 computer communication ports, the real-time working curve can be shown and the data saved.
LCD display interface makes it easy to view the revolving speed and temperature values on line, as well as monitor the working status.
Afterheat warning function above 50°Cand display of heating plate residual temperature after power off can fully secure users.
The external temperature sensor has a good control of medium temperature, with temperature control accuracy up to 0.2 °C.
Brushless DC motor runs quietly, and has more advantages of safe, explosion-proof and free of maintenance.
Equipped with independent safety circuits, in which plate safety temperature can be set and automatic power-off is realized when safety temperature is exceeded.
stainless steel plate gives an excellent performance in resistance to chemical corrosion and high temperature.
Whole enclosed aluminium alloy shell can has good corrosion resistance and high temperature resistance.
Magnetic stirrers aresuitable to be used in the mixture of low viscosity liquid and solid-liquid,mainly applied in chemical synthesis, physicochemical analysis,bio-pharmaceuticals, materials science, and so on.
PID temperature controltechnology has a fine control of heating process, during which the targettemperature can be reached quickly and accurate temperature control is carriedout, with heated temperature as high as 340°C and long time ofcontinuous and stable operation.
Stainlesssteel work plates are of good heat uniformity and resistance to chemicalcorrosion. The heating type magnestic stirrer can be joined with an outsidetemperature sensor , which is plug and play, and can monitor the actualtemperature of samples in real-time.
Model | Digital display type |
Voltage[VAC] | 220 |
Frequency[Hz] | 50 |
Power[W] | 500 |
Stirring point position quantity | 1 |
Max.stirring qaintity(H2O)[L] | 20 |
Stirring point position quantity[mm] | 80 |
Motor type | Brushless Direct Current Motor |
Motor rating input[W] | 18 |
Motor rating output[W] | 10 |
Speed range[rpm] | 100-1600 |
Speed display accuracy[rpm] | 1 |
Material | Stainless steel |
Dimension of Plate[mm] | 135 |
Heating power[W] | 500 |
Heating rate (1 L water) [K/min] | 6 |
Heating Temperature Range[°C] | RT-350 |
Display Type | LCD |
Temperature display accuracy[°C] | 0.1 |
Control accuracy of heating temperature[°C] | 1 |
Safe temperature range(heating plate)[°C] | 100-350 |
temperature sensor of outside position | PT1000 |
Control temperature accuracy of outside temperature sensor[°C] | 0.2 |
Dimension[mm] | 280*160*86 |
Weight[kg] |
|
Permissible ambient temperature[°C] | 9-40 |
Permissible ambient humidity | 80% |
RS232 port | Yes |
