製品情報
| タイプ: コックのカートリッジ | 原産地: 中国(本土) | 銘柄: xingtailong |
| モデル番号: Xtl-044239 | 材料: セラミック | 形状: オプション |
| サイズ: オプション | 色: 白 | タイプ: 蛇口用カートリッジ |
| サンプル: によって無料の手数料 | ブランド: xingtailong | 原産地: 中国湖南省の |
| 機能: バルブコア | 硬度/平坦性/粗さ: 1100hv5/0.6μm/ra0.25μm | 使用される: セラミックディスクをタップ |
包装
| 包装: Polybag+pallet |
仕様
セラミックディスク: 1.高い意思。 2.固体- 抵抗する、 アルカリ- 抵抗する。 3.良好な気密性能。 4.最高の価格、 最高のサービス。

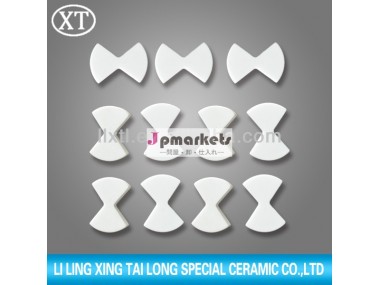

Alumina/Ceramic Disc Valve/Cartridge/Faucet/Tap/Innovacera
Features of the ceramic disc:
1) A variety of specifications available.
2) Satisfy various technical request.
3) Lower medium spoilage.
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed
Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.
| Performance For Industrial Ceramic | |||||
| Item | Unit | 95 Al2O3 | 96 Al2O3 | 99 Al2O3 | |
| Physical Characteristics | Heat resistance | 0C | 1500 | 1550 | 1800 |
| Bulk density | g/cm3 | 3.6 | 3.6 | 3.9 | |
| Water absorption | % | 0 | 0 | 0 | |
| Mechanical Characteristics | Flexural strength | Mpa | 320 | 340 | 360 |
| Hardness vickers | Gpa | 12.2 | 13.5 | 15.6 | |
| Elastic modulus | Gpa | 280 | 320 | 370 | |
| Poisson’s ratio | 0.22 | 0.23 | 0.23 | ||
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 7.1 | 7.2 | 8 |
| Thermal conductivity | w/(m.k) | 16 | 24 | 32 | |
| Specific Heat | *10-3J/(kg*K) | 0.78 | 0.78 | 0.9 | |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 9 | 9.4 | 9.9 |
| Dielectric loss angle | *10-4 | 15 | 5 | 1 | |
| Dielectric strength | *106V/m | 12 | 15 | 15 | |
| Processing technology | |||||
| Process range (mm) | |||||
| Outside Diameter | 1---300 | ||||
| Inside Diameter | 0.5---300 | ||||
| Length | 0.5---1200 | ||||
| Accuracy of working (mm) | |||||
| Perpendicularity | 0.01 | ||||
| Concentricity | 0.01 | ||||
| Roundness | 0.005 | ||||
| Straightness | 0.005 | ||||
| Parallelism | 0.01 | ||||
| Planeness | 0.005 | ||||
| Roughness | 0.05 | ||||
| Fit clearance | 0.005 | ||||
