製品情報

モデル番号: lkv373

原産地: 中国(本土)

包装

包装: Neutral packing

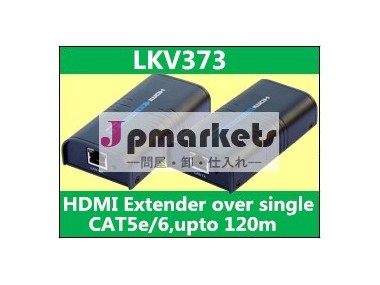

HDMI Extender over single CAT5e/6,upto 120m -LKV373It is designed to convert HDMI to network data based on standard TCP/IP protocal, and transmit it by CAT5 cable or LAN to a distance maximum 120 meters away.

• Input/Output: 1x HDMI, 1x LAN,
• Standard TCP/IP protocol, follow the standard of IEEE-568B.
• Supports resolutions up to 1080p Full HD
• Supports Ethernet bandwidth:100m
• HDCP compliant
• Support all HDMI resolution input/output:
• 480i/480p@60Hz,576i@/576p@50Hz,720p/1080i/1080p@50/60Hz
• Extends by router connection of LAN connection, cable length requirements as follow:

          CAT5 Maximum 80m between two Devices
          CAT5e Maximum 100m between two Devices

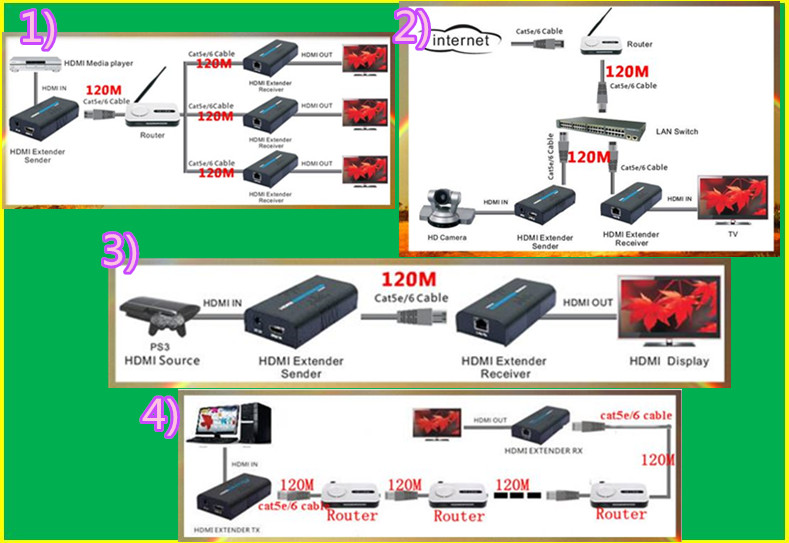

          CAT6 Maximum 120m between two Devices4 Connection ways
