製品情報
| 条件: 新しい | タイプ: 自然な循環 | 使用法: 産業 |
| 構造: 火管 | 圧力: 低圧 | 様式: 縦 |
| 燃料: oil/gas fired | 原産地: 中国(本土) | 銘柄: Yutong |
| モデル番号: CLHS | 出力: 熱湯 | 次元(L*W*H): 750mm*750mm*1380mm |
| 重量: 380kg | 証明: ISO9001:2000;ISO9001:2008;QS-9000;SGS | 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため |
| rated power: 0.12MW | Supply water temperature: 85°C | Efficiency: 89% |
| water capacity: 170L | pressure: normal pressure | Return water temperature: 65°C |
| outlet: 40mm | inlet: 40mm | electric power consumption: 0.4kw/h |
| water volume: 95/170/342/550/736/1000/1280L for customer choose |
包装
| 包装: Plywood case professional packaging transportation |
仕様
vertical water boiler 1.35 years professional boiler experience 2.ISO SGS 3.fuel oil/gas 4.Efficiency89%
Oil/gas fired vertical water boiler
1.Main Performance Characteristics:
1. Vertical fire tube chamber consumption structure, using thread smoke tube, warming faster, high thermal efficiency;
2. The design of big furnace, large combustion chamber, sufficient burning, energy conservation and environmental protection.
3. The cylindrical appearance, small area occupied; Adopting color plate for the outer packing, elegant appearance of the externality; adopting high thermal resistance material for the thermal insulation layer. heat preservation effect is good.
4. Selecting the world famous brand burner, excellent quality, advanced technology, sufficient burning, reliable operation; Having the function of furnace cleaning, automatic ignition, ignition detection, high voltage protection of gas firing, low voltage protection of gas firing, leak detection, etc. to ensure the safe operation.
5. Equipped with computer manpower controller, operating easily, easy management, reliable operation, completed security protection function; With the function of protection of water shortage, heat preservation, overpressure, self-checking of breakdown, burner fault flameout, alarmming etc. chain safeguard function; Having the function of self-controlling between strong and weak fire. And also the function of recording on burning work time. setting freely of the temperature control.
6. Soot and the nitrogen oxide emissions accord with the state environmental protection standard requirements.
2. Technical Parameters
| Model | CLHS0.06-85/65-Y(Q) | CLHS0.12-85/65- Y(Q) | CLHS 0.24-85/65-Y(Q) | CLHS0.35-85/65- Y(Q) | CLHS0.5-85/65 Y(Q) | CLHS0.6-85/65-Y(Q) | CLHS0.7-85/65-Y(Q) |
| Rated power(MW) | 0.06 | 0.12 | 0.24 | 0.35 | 0.5 | 0.6 | 0.7 |
| woking presure | normal pressure | ||||||
| supply water temperatur(°C ) | 85 | ||||||
| Return water temperature ( °C ) | 65 | ||||||
| Efficiency |
89% | ||||||
| Water capacity(L) | 95 | 170 | 342 | 550 | 736 | 1000 | 1280 |
| Outlet(mm) | 40 | 40 | 65 | 80 | 80 | 80 | 100 |
| Inlet(mm) | 40 | 40 | 65 | 80 | 80 | 80 | 100 |
| Electric Power consumption(kw/h) | 0.3 | 0.4 | 0.8 | 1 | 2.3 | 2.3 | 3.3 |
| Chimney(mm) | 180 | 180 | 180 | 240 | 240 | 300 | 300 |
Size:length*width*height(mm)
| 630*630*1150 | 750*750*1380 | 950*880*1700 | 1110*1040*1850 | 1310*1140*1960 | 1310*1240*2100 | 1450*138082250 |
Weight(kg)
| 200 | 380 | 44622.5 | 720 | 775.1 | 1200 | 1900 |
| Oil Fuel consumption(kg/h) | 5.6 | 11.3 | 22.5 | 32.8 | 45 | 56.3 | 65.7 |
| Natural Gas consumption (N m3/h ) | 6.8 | 13.6 | 27.3 | 39.8 | 54.6 | 68.2 | 79.6 |

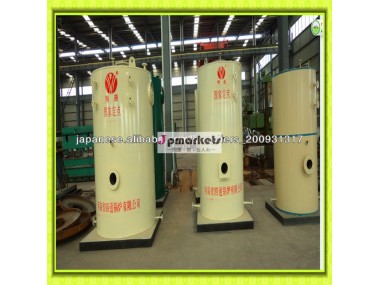

3.Boiler in workshop
