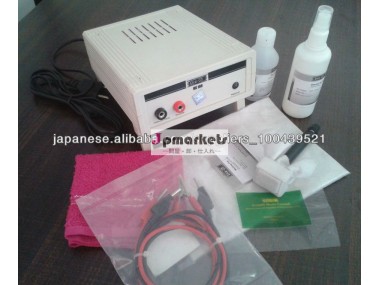

EtchON Chemical metal Etching Machine, Model: ME100

Electro-Chemical etching systems are perfect for marking various conductive metals. metallic Items can all be marked through Consumables like Stencils and Electrolyte Solution. Using metal etching technique we are capable of marking high quality logos, simple text messages, part numbers, dates, serial numbers and other required information, directly onto the psroduct - whether the surface is rounded or flat. The marking process takes a matter of seconds.

EtchON ME 100 ", This model is portable manual electrochemical metal etching machine. This model is economical and suitable for small batch production. 10V Direct Etching Output, Etching process is limited only for black/brown marking. Graphite based Marking Head for Durability. Non Corrosive Electrolyte, Reusable Felt, This machine is nothing but economical substitute for laser marking machines.

EtchON ME100
TECHNICAL FEATURES
Working Style : Manual Etching
Marking Color : Black/Brown
AC Voltage Output : Yes
DC Voltage Output : No
Etching Time : Average (3-5 Seconds)
Etching Depth Less then 0.005 mm (50 microns)
Etching Quality :Average Good

TECHNICAL SPECIFICATION
Transformer :Sealed Compact
Input Voltage : 230VAC
Output Voltage :10 V (Direct)
Max Power :25VA
DIMENSIONS (mm):L X W X H (205x27090)
Weight: 1 Kg
APPLICATION :Applicable for All Conductive metals(Non Coated)
WARRANTY : 1 Years Carry-in
