• アルミニウムウィンドウコーナー複合機
    商品番号: 5318721
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    製品情報

    原産地: 中国(本土) 銘柄: bohman モデル番号: Lmb-120
    条件: 新しい 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため 電源: 380v50hz
    切断用モータポウ: 1.5キロワット オイルポンプの圧力定格: 16mpa モータ回転速度: 1400r/min
    ポンプのモデル: 2.5mcy heighのプロファイル加工: (max) 120mm プロファイル加工幅: 90mm
    輪郭寸法: 1000mm*1200mm*1200mm キーワード: アルミニウムコーナー複合機

    包装

    包装: 標準的な輸出パッキング

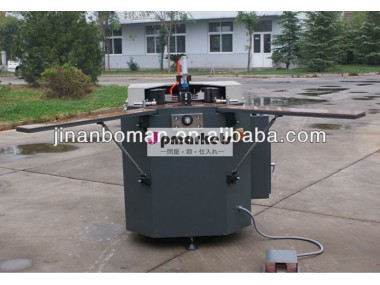

    アルミニウムコーナー複合機



     1. The  features of equipment

    1. The power adopts the hydraulic pressure system,ensured the steady and reliable operation.
    2. The left and right punching head feed synchronously,avioding the unhelpful deformation.
    3. Synchronal feeding structure makes the adjustment very easy.
    4. It is collocated single cutter of many points crimping cutter,ensure reliably crimping heat insulation aluminum windows and doors.
    5. The frame is specially jointed by 3mm steel plate introduced from the Jisteel and after aging treatment,which ensure the high rigidity.

    2. Main specification and technical parameter



    Power supply

    380V 50Hz

    Cutting motor powe

    1.5Kw

    Rated oil pump pressure

    16Mpa

    Motor rotary speed

    1400r/min

    Model of the pump

    2.5MCY

    Profile processing height

    (Max)120mm

    Profile processing width

    90mm

    Operation air pressure

    0.5-0.8Mpa

    General pressure of corner combining

    0-85KN

    Corner combining casing movement journey

    85mm

    The adjustable range of the main location block

    70mm

    Contour dimension

    1000mm*1200mm*1200mm

    Weight

    350Kg





    3.Our Enterprise mission



    Targeting the high,fine ,excellent products,and developing new products constantly to meet customer needs.

    Our goal is relying on the science and technology ,aiming at domestic and foreign markets.Customer needs is our direction,customer satisfaction is our service tenet.We sincerely look forward to your cooperation.
