製品情報
| 条件: 新しい | 原産地: 台湾 | 銘柄: PORA |
| 使用法: Other |

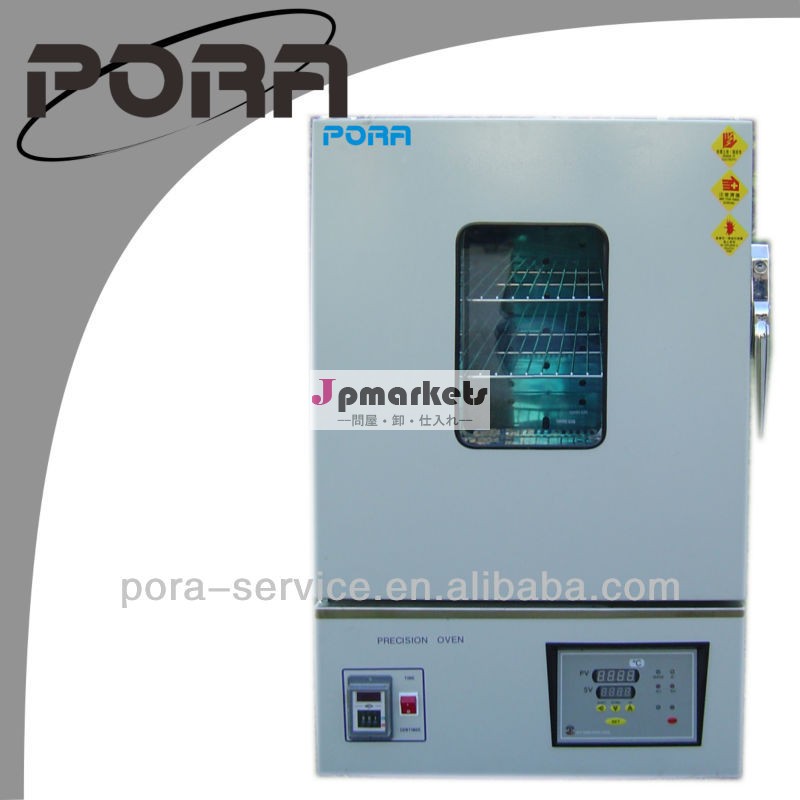

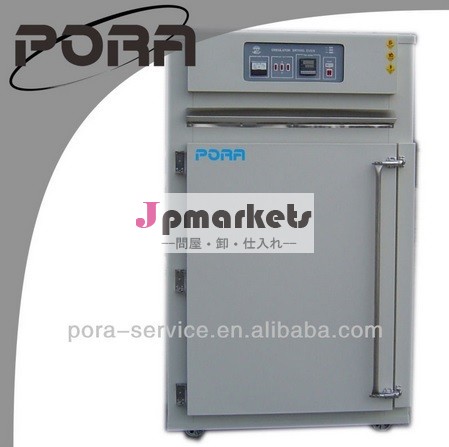

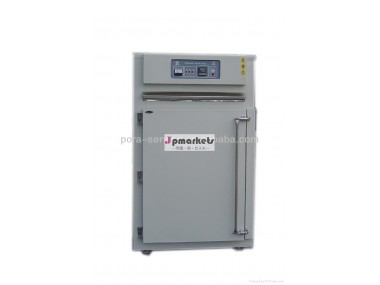

大型熱風循環オーブン
*日本語対応は可能ですので、お気楽にお問い合わせください。
| 品番 | 内形寸法(W*D*H cm) | 外形寸法(W*D*H cm) | 内容積(L) | 電源 | 棚板 | 扉数 |
| MAO-90 | 60×50×90 | 82×65×150 | 270 | 1O220V | 5 | 1 |
| MAO-100 | 100×60×100 | 105×75×158 | 600 | 1/3O220v | 6 | 1 |
| MAO-120 | 120×60×100 | 145×75×158 | 720 | 3O220V | 6 | 2 |
| MAO-140 | 140×60×120 | 165×75×182 | 1008 | 3O220V | 7 | 2 |
| MAO-160 | 160×80×140 | 190×95×205 | 1792 | 3O220V | 8 | 2 |
| MAO-180 | 180×100×140 | 210×116×205 | 2520 | 3O220V | 8 | 2 |
| /380V | ||||||
| MAO-200 | 200×120×160 | 230×135×225 | 3840 | 3O220V | 9 | 2 |
| /380V |
| MATERIAL | INTERN- MADE OF SUS 430 STAINLESS STEEL PLATE | ||||||
| OUTER- GALVANIZED STEEL PLATE WITH FINISH | |||||||
| TEMPERATURE RANGE | ROOM TEMPERATURE~200˚C OR~300˚C | ||||||
| TEMPERATURE ACCURACY | 0.5˚C SPREAD 2˚C | ||||||
| TEMPERATURE CONTROL | PID Micro-Machine Temperature Controller | ||||||
| ConTROL SYSTEM | ADOPT SSR METHOD OR REPLAY METHOD 3 STEPS OF HEATING | ||||||
| AIRFLOW METHOD | HORIZonTAL AIRFLOW LOUVERD FAN USE FORCED CIRCULATION | ||||||
| HEAT INSULATION MATERIAL | ADOPT importED MINERAL WOOL. NO POLLUTION, GREAT TEMPERATURE MAINTAIN AND HEAT INSULATION | ||||||
| ATTACHMENTS | GRAVITY-RESIST WHEELS ON THE FOUNDATION. EASY TO MOVE AROUND. WITH AMPERE METER. | ||||||
| SPECIALITY | 1. PID Micro-Machine Temperature Controller IT CAN ALSO WORK WITH SSR OR REPLAY METHOD, 3 STAGES OF HEATING SWITCH ConTROL IN ORDER TO REACH GREAT PRECISION | ||||||
| 2. SPECIALLY MADE HIGH-TEMPERATURE RESIST LONG SHAFT MOTOR AND LOUVERD FAN. USE FORCED ConVECTION TO EXHAUST STEAM, WASTE GAS AND VOLATILE GAS, ALSO DRY RAPIDLY. ENHANCE THE QUALITY OF PRODUCTS. | |||||||
| OPTIonAL ACCESSORIES | 1. WEST GERMANY SUPER HIGH-TEMPERATURE PROTECTOR | ||||||
| 2. 999mm DIGITAL TIMKEEPER. START TO CLOCK WHEN REACH TO SETTING TEMPERATURE. WHEN TIME’S UP. HEATING STOPS AND ALARM RINGS FOR 6 SEConDS AUTOMATICALLY. | |||||||
| 3. ACCEPT REQUESTS IF NEEDED MORE PALINGS. | |||||||
| TEMPERATURE | *TEMPERATURE:200˚C(or 300˚C) | ||||||
| REMARK | *POWER:220V(380V/440V) | ||||||
