製品情報
原産地: 中国(本土) | 銘柄: lcパワー | モデル番号: Lcsc- b |
適用: 太陽系のコントローラー | 評価される電圧: 12v/24v | 最大流通: 10a15a |
アプリケーション: 太陽光発電システム | 充電モード: mppt | lifepo4のバッテリーのための特別な: オプション |
認証・保証: ce、 2年 | 納期: 5- 10日 | 防水: ip67 |
サイズ・重量: コンパクトなサイズ、 450g | 色・ケーシング: アルマイトalluminumケーシング、 白 | omeサービス: 受け入れられ |
完全な保護: はい |
包装
包装: 業界標準的なパッキング |
仕様
Mpptソーラーチャージコントローラー1.高効率mppt2.ip673.ir通信4.のために利用できるリチウム電池。
solar controller for lifepo4 battery
MPPT Solar charge controller
MPPT Solar controller LCSC-B is a hight efficiency controller which is designed for a solar energy system. It is connected between solar panel, battery and load as the centre of the system. The Controller tracks solar panel’s maximum power output with 99.9% efficiency and charge the battery with 96% efficiency. It provides all electronic protection to the solar panel, battery and load, eg. battery under voltage protection, overload protection and short-circuit protection function. In a word, the controller provides a stable, reliable and efficient system management.
Key Features:
- MPPT efficiency≥99.9%.
- parameter could be set and viewed through Wireless infrared communication.
- Three stage charge: MPPT charge, Equlization charge and float charge.
- Battery charge efficiency is up to 96% by Synchronous rectification.
- Avalaible for LifePo4 battery without confict with PCB of the battery.(optional function)
- Avalaible for Lithium battery without confict with PCB of the battery.(optional function)
- Self Consumption ≤ 4mA
- Protect function
battery reverse connection protection
Solar Panel reverse connection protection
Reverse current protection.
Solar Panel and battery reverse connection protection
battery under-voltage protection
overload protection
load short-circuit protection
- Ingress protection: IP67.
- Non Aluminum electrolytic capacitor design,
Parameters
Item | LCSC-B1 | LCSC-B2 | |
Battery | Max. charge current | 10A | 15A |
Voltage | 12V/24V auto recognition | ||
Over voltage protection | 15V/30V | ||
under voltage protection | 10.8V/21.6V | ||
Exit the under voltage protection | 11.4V/22.8V | ||
Constant voltage equalizing charge | 14.4V/28.8V | ||
Constant voltage floating charge | 13.8V/27.6V | ||
Tem. compensation coefficient | -4mV/°C/2V | ||
Solar panel | PV open voltage | ≤55V | |
Optimal work voltage | ≥18V/36V | ||
System | MPPT efficiency | ≥99.9% | |
Charger efficiency | ≥96% | ||
Consumption in sleep mode | ≤5mA | ≤10mA | |
Display | LED | ||
communication | Wireless infrared communication | ||
Operating temp. range | -40~60°C | ||
Storage temperature range | -45~80°C | ||
Operating Humidity | 0~100%RH | ||
Storage Humidity | 0~100%RH | ||
Altitude | 2500m | ||
Ingress protection | IP67 |

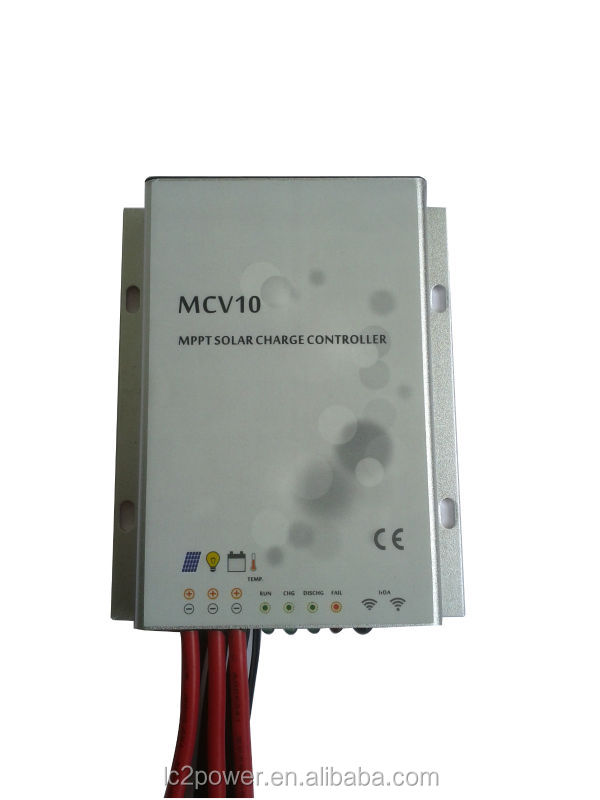

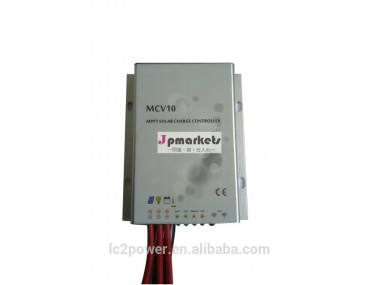

Product photos:
solar controller for lifepo4 battery
