製品情報
| タイプ: 音響パネル | 原産地: 中国(本土) | 銘柄: 洞、 ハング |
| モデル番号: アコースティックフォームの吸音 | 音響パネルのタイプ: 音の泡のパネル | 名: アコースティックフォームの吸音 |
| 他の名前: カスタマイズされたアコースティックフォームの吸音 | 材料: ポリウレタン | レギュラーサイズ: 1000*2000mm |
| 厚さ: 20、 25、 30、 顧客の要求に応じて50mm | 密度: 30( ±5%ずれ) kg/m3 | 引張強さ: 63kpa |
| 引裂強度: 1.65n/cm | 熱伝導率: 0.039w/m。 k | 難燃性規格: ul94hf1 |
包装
| 包装: アコースティックフォームの吸音パッケージ: カートン、 圧縮された真空のpolybags、 10pcs/bag、 カスタマイズすることができ |
仕様
アコースティックフォームの吸音1.最も効果的・効率的な材料2.resonableノイズリダクション3.基準: ul94hf1
High quality customized acoustic foam sound absorption
Description for acoustic foam sound absorption:
This fireproof Acoustic Foam is based on a remarkable cellular bi-elastomer, which is incapable of supporting combustion, and will protect other materials from a wide range of dangerous ignition sources. The foam is soft, pliant and resilient therefore, making it easy to fit.Flexible ,easily cut,and easy to handle and install,saving in labor.Factory direct sell ,high quality with competitive price.
As well as being fireproof it is also CFC and HCFC free. Flame retardant polyurethane foam is UL94 HF-1 level.
Physical parameter for acoustic foam sound absorption:
Materials | Physical characteristics | Unit/Standards | Results |
Sound- absorbing Polyurethane Foam | Density | KG/M3 | 30(±5% Deviation) |
Flame-resistant Class | UL94 | HF-1 | |
Tensile Strength | Kpa | 63 | |
Tear Strength | N/CM | 1.65 | |
75% Compres Permanent Distortion Rate | % | 3.0 | |
Heat Conductivity Rate | W/m.k | 0.039 | |
Tensile Rate | % | 96 | |
Rebound Rate | % | 55 | |
25% Compression Rigidity | N | 112 | |
65% Compression Rigidity | N | 210 | |
65%/25% Cave-in Ratio |
| 1.9 | |
Temperature | °C | -55~140 |

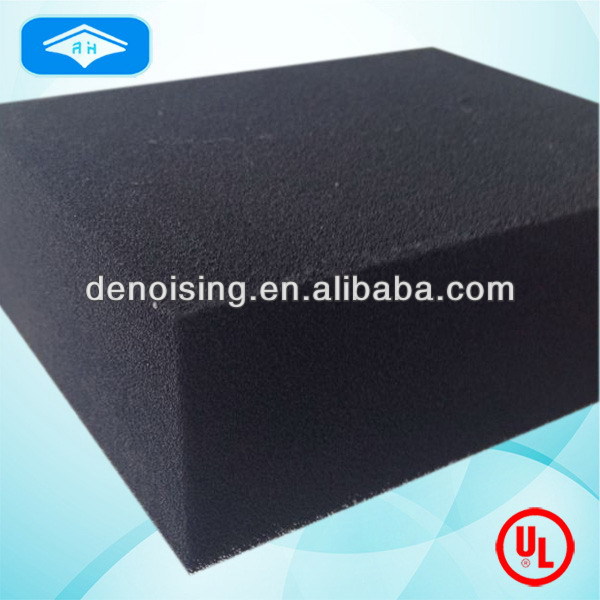

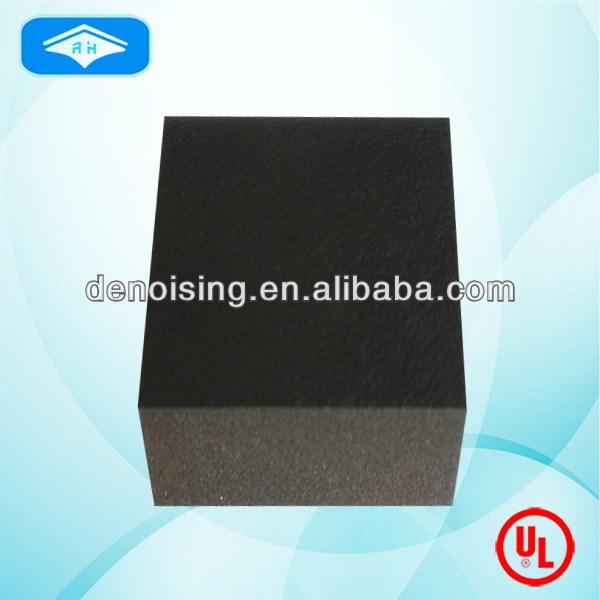

Details show for acoustic foam sound absorption:
Our service:
ü If you need,we would like to provide free charge samples for you;
ü Reply you inquiry in 24 working hours;
ü Experienced staffs answer all your questions in professional and fluent English ;
ü Customized design is available, OEM & OEDM are welcome ;
ü Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs ;
Special discount and protection of sales area provided to your distributor.
