製品情報
| タイプ: エアコンは分ける | 原産地: 中国(本土) | 銘柄: BLUE |
| モデル番号: BLR/VLR-12A-F/F-250 |
包装
| 包装: 1ボックスに1個.我々は量が私達に必要なに到達した場合顧客に基づいてボックスは必須です設計することができます. |
仕様

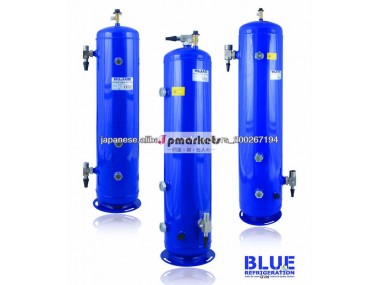

BLR/ VLR-DS VERTICAL受液器（12A-13A）
テクニカルデータ
オプショナル
1/2 "NPTF接続
1/2 "NPT FLUG
液面センサ
| Model | Volume （Lt.） | Dimensions | Connections | ||||
| NPTF | Sight Glasses | Inlet & Outlet - Rotalock Valve | |||||
| Diameter (mm) | Length (mm) | Connections (Inch) | Inlet (Inch) | Outlet (Inch) | |||
| BLR/VLR-12A-F/F-250 | 250 | ∅ 500 | 1470 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-12A-F/F-250x1 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-250x2 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-250x3 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-300 | 300 | ∅ 500 | 1770 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-12A-F/F-300x1 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-300x2 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-300x3 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-350 | 350 | ∅ 500 | 2020 | 1/2" NPTF | - | ODS 76 Flange | ODS 76 Flange |
| BLR/VLR-12A-F/F-350x1 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-350x2 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-350x3 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-350x4 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-400 | 400 | ∅ 500 | 2320 | 1/2" NPTF | - | ODS 76 Flange | ODS 76 Flange |
| BLR/VLR-12A-F/F-400x1 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-400x2 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-400x3 | SG-1 3/4 | ||||||
| BLR/VLR-12A-F/F-400x4 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-450 | 450 | ∅ 600 | 1820 | 1/2" NPTF | - | ODS 80 Flange | ODS 80 Flange |
| BLR/VLR-13A-F/F-450x1 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-450x2 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-450x3 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-450x4 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-500 | 500 | ∅ 600 | 2020 | 1/2" NPTF | - | ODS 80 Flange | ODS 80 Flange |
| BLR/VLR-13A-F/F-500x1 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-500x2 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-500x3 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-500x4 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-550 | 550 | ∅ 600 | 2220 | 1/2" NPTF | - | ODS 80 Flange | ODS 80 Flange |
| BLR/VLR-13A-F/F-550x1 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-550x2 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-550x3 | SG-1 3/4 | ||||||
| BLR/VLR-13A-F/F-550x4 | SG-1 3/4 | ||||||
- 使用圧力[PS]：33Bar
- テスト圧力[PT]：48Bar
- 許容温度[TS]：最小 - 10°C/Max.-130°C
- カラー[RAL]：5009
- 一般Tolerans[mm]と：±3
