製品情報

タイプ: ガスストーブは分ける	原産地: 中国(本土)	銘柄: ライアン
モデル番号: Rbdq8.5b	アプリケーション: ガスオーブン	構造: 安全な
材料: 銅、 ゴム	メディア: ガス

包装

包装: ブリスターパッケージに輸出カートンで

仕様

1.ガス磁石ユニットrbdq8.5b1.ce規格、 iso9001: 2008規格2.competetive価格3.良いサービス

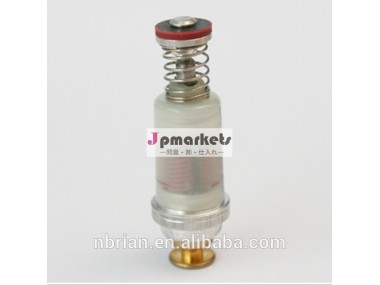

3V Gas heater magnet unit RBDQ9.0A with CE Standard with thermocouple to be a safety device used in Gas oven
Different sepecification for option



Usage: Apply a gas water heater, combustion heater, BBQ gas appliance, dryer apparatus for control components.

How it works: thermocouple and solenoid valve for supporting the use of the composition of gas with flame failure safety device, the thermocouple is to provide micro-power sensor, solenoid valve to control the device with the Department of thermocouple tip heated by the flame When the cold end and hot end temperature difference between the thermoelectric power due, thus creating a closed loop current, so that solenoid valve in the external and common role of magnetic fields, is pull the state, gas flow, when the flame goes out, the thermocouple rapid loss of potential, loss of suction valve being reset under the action of compression spring to close the gas line, which play a security role. Scope: natural gas, liquefied petroleum gas, artificial gas.

technical parameters
open valve current		<100mA
closing valve current		> 25mA
resistance (20 °C)		18 ± 15% mΩ
full compression spring force		2.5N ± 10%
temperature range		-10 °C ~ 120 °C
tightness	in leakage	pressure 1.0KPa and 15Kpa leakage <0.03L / h
	external leakage	pressure 15Kpa leakage <0.02L / h
