製品情報
| 原産地: 中国(本土) | 銘柄: cnsz | モデル番号: Sz-g |
| 色: オプション | 材料: アルミ | 作業オブジェクト: 天然/液化石油/バイオガス |
| 標準: Gb/t6968-2011 | ローディングの港: 上海/寧波/深セン | 支払: L/c、 t/t、 ウェスタンユニオン |
包装
| 包装: インナーボックス11作品のためにin16箱カートン |
仕様
Specifications 1.diaphragm type gas meter 2.Aluminum case 3.Factory price 4.11 year experience 5.ISO9001:2

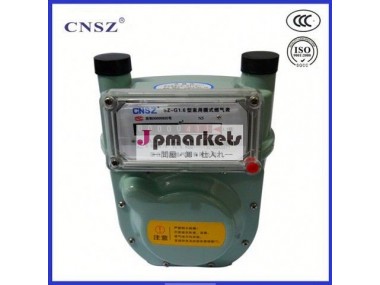

SZ-G series diaphragm type gas meter
Why choose our products?
We have 11 years experience to produce and design gas meter.
We passed all the most strict measurement test in China.
We are one wireless remote intelligent gas meter research and design center of Zhejiang Province.
We have exported to Russia. Brazil, Kazakhstan ,Iran,India and we passed the Brazil INMETRO certificate.
We supply customization service to design special meter for your requirement.
We are 'CHINA National Quality Excellent Enterprise '
If you want to know more ab0ut our company , please search " Sanzhou Gas Meter " on Youtube.
I.Introduction
SZ-G series diaphragm type gas meter which the case is made of aluminium alloy by die casting. This product have a reasonable structural design. The technical criteria of this series gas meter comply with the requirement provision in
II.Application
SZ-G series diaphragm type gas meter is suitable for measuring of natural gas,liquefied petroleum gas,biogas,etc..
III.Characteristics
1.Factory price, professional manufacturer
2.Long service life
3.Diaphragm type structure, advanced process, big character wheel , counting device, accurate measuring, easy maintenance.
4. Simple structure, small size, good mechanical properties, surface spray process
IV.Product appearance and overall dimension(unit:mm)
V.Mean Technical Parameter
Name of parameters | Unit | Type | ||
SZ-G1.6 | SZ-G2.5 | |||
Maximum flow-rate Qmax |
| 2.5 | 4 | |
Minimum flow-rate Qmin |
| 0.016 | 0.025 | |
Maximum pressure | kPa | 10 | ||
Pressure loss | Pa | ≤200 | ||
Basic error | % | Qmin≤Q<Qt ±3 | ||
Qt≤Q≤Qmax ±1.5 | ||||
Conncetion screw worm | M30×2 | |||
Distance between connection centers | mm | 130 | ||
Working temperature | °C | -10~+40 | ||
VI.Prduct detail
