製品情報
| 分類: 実験室のサーモスタット装置 | 銘柄: nade | モデル番号: Ndc-3006 |
| 原産地: 中国(本土) | 温度精度( °c): 0.1 | 温度範囲: -30~100°c |
| 立体求積タンク: 6 | タイプ: 低温の水浴 | 循環ポンプ流量( l/min): 8 |
| 周期モデル: 内側と外側のサイクル | 冷凍要素: コンプレッサー | モデル: Ndc-3006 |
包装
| 包装: 輸出用の標準パッキン |
仕様
1.Thermostatic浴室の2.Low一定した臨時雇用者の浴室3.PIDのヒートコントロール4.Compressorの連続操作5Overheatingの保護

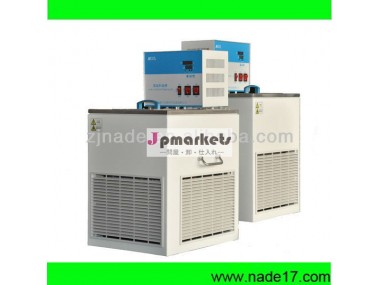

NDC series Low-temperature thermostatic bath
regulate PID parameters automatic NDC series Low-temperature thermostatic bath use single chip microprocessor controlally. imp0rt platinum resistance (Pt100) to test temperature. High precision Temperature control and small fluctuation characters ; Refrigeration charactered by high efficiency and low noise . We provide customers constant temperature field of high -precision 、controlled and uniform temperature. The instrument is stable and easy to operate.
The instrument is widely used in biological engineeringの medicine、 chemical industry、 petroleum me-tallurgy、 food、 etc. They are best constant instrument for research institutesの、 quality inspection department factory laboratory、 colleges and universities etc .
This series has different specifications to fulfill different customers. Customers can choose what they need with different temperature rangesの volumes and functions.
特性:
1 high qualityの high reliability、 high efficiency compressor.
2 the bladder and mesa are stainless steelの which show clearness、 long serving life and corrosion resistance.
3 Using XMT simulation digital PID automatic control system、 the temperature is digital display and setting.
4 Fully enclosed refrigeration compressor、 refrigeration system has overheat protection function.
5 Advanced internal/external circulation pump system can introduce outside the liquid to build the second constant temperature field.
6 the cold liquid in groove can be introduced outsideの which can cool experimental container、 or can directly carry out low temperature、 constant temperature experiments in the groove
項目 | 低constant Temp bath |
モデル | NDC-3006 |
Temp Range(°C) | - 30~100 |
Temp Accuracy(°C) | 0.1 |
Temp Fluctuation(°C) | ±0.05(Water or pure alcohol in 25°C) |
容積(L) | 6 |
Opening Size(mm) | 150150x150 |
Cycle Model | Inner and outside cycle |
Circulation pump flow(L /min) | 8 |
Refrigeration element | 圧縮機 |
力(W) | 1100 |
サイズ(mm)の LxWxH | 340400x670 |
Net weight (Kg) | 35 |
電圧 | 220v 50Hz |
