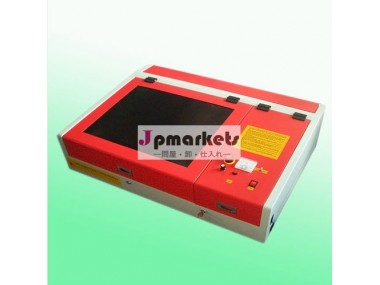

BRAND NEW 40W CO2 LASER ENGRAVING MACHINE USB2.0

You are bidding on a brand new high quality 40W CO2 laser engraving machine. Two colors for your option: Blue and Black, we will ship blue if you don't mention the specific color.

APPLICABLE USES

This machine is suitable for seal engraving, advertisement, art, gift, garment, leather, toy, upholstery design, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, model industry, craftwork, and many other industrial/ hobby uses.

Use your PC and the included free Moshi or corellaser Software to engrave almost anything on almost any surface. For further information, please feel free to contact us.

Technical Parameters

Computer to Engraver Interface: USB2.0 computer connection

FDA Compliant: Yes

CE Certification: Yes

ISO9001 Quality Certification: Yes

Laser Type: CO2 Gas

Tube Trigger Voltage: 20 kV

Tube Operating Voltage: 15 kV

Current: 0 ~ 22mA

Engraving Area: 12” x 8” (30 x 20cm)

Maximum Item Size to Engrave: 10.25” wide x 8.75” long x 2.85” high

Laser Tube (life hours): 1000 - 1300 Hours

Laser Power: 40 W

Engraving Speed: 0 - 350 mm/s (0 - 13.8 in./s)

Cutting Speed: 0 - 35 mm/s (0 - 1.38 in./s)

Minimum Character Size: 1 x 1mm (0.04 x 0.04 in.)

Resolution Ratio: 0.026mm / 0.001 in. (1000 dpi)

Power Supply: 110 V / 60 Hz for USA, Canada, Japan etc.

                    220 V ~ 250 V for the remaining countries.

                    Please inform us of what power supply your country uses after you buy this item.

Resetting Positioning: ≤ 0.01mm (0.0004 in.)

Motor Type: Stepper Motor

Operation Software: Moshi (included)

Power Consumption: ≤ 250 W

Operating Temperature: 32° - 113° F (0° - 45° C)

Graphic Formats Supported: PLT, DXF, BMP, JPG, GIF, PGN, TIF

Coolant System: Water (Pump system included)

Recommended Spare Parts/Consumables: Laser Tube, Focusing & Reflection lens

Product Dimensions: 31.4” x 19.6” x 9.8” (800 x 500 x 250 mm)

Product Weight: 30 kg / 67 lb (shipping 38 kg / 80 lb)

This machine does not have rotary function.

CO2 Laser Tube and power supply we're carrying: 20W, 40W, 60W, 80W, 100W, 130W

How to use

Please read the user manual to setup and use the machine.

How is our product  a better choice than the competitor’s similar product?

Our Laser Engravers are built and designed using the newest technological methods, lightweight & durable materials, and extremely precise & high speed movement. The following statements cover our products advantages:

1. FDA Compliant, CE Certified, ISO9001 Quality Certified
2. Brand New with Software, enable faster engraving and cutting speed
3. Extreme precision from our Stepping Motor
4. Reinforced and thickened machine body makes the machine more durable and increases its life time.
5. A built heat dispersion fan reduces the temperature of electrical components
6. The microchip and advanced motherboard which control the speed & accuracy are imp0rted from Japan
7. German made bearings and stepping belts increase the accuracy and have also increased the component life span by two to three times that of the original engraver.
8. Built in safety switch prevents laser use while the loading lid is open
9. Multiple graphic formats are supported such as: PLT, DXF, BMP, JPG, GIF, PGN, and TIF
10. Engrave almost anything on almost any surface
11. 2 years free warranty and life time free maintenance service
12. This item is already customs cleared, and ready to be shipped from our US warehouse. Be careful when ordering other laser engravers that are not FDA compliant and/or are outside the United States , because US Customs can and will seize them. We have this unit in our possession and ready to ship.

Product Support

Please understand before you buy:

1. Laser Engravers are not something every one can operate. The included software can be complicated for some people and all CO2 laser engravers can be dangerous unless properly used.

2. You must be willing to take the time needed to learn the software and the operation of the laser engraver. The time needed will vary greatly depending on your knowledge.

3. This Engraver does not work on windows XP PRO. It does work on all other windows version but we only give tech support on Windows XP Home. If you have something besides XP Home then we cannot give any tech support.

4. We offer basic support which only includes help to engrave text from the software that is included with the machine. The software is called Moshi. We do not support images or do any further support on this item. Everything you need to get started including the product manual is included with this item. Some installation and assembly required.

Warranty

1 years free warranty and life time free maintenance service. Wearable items are not covered under warranty. Wearable items include, but are not limited to; laser tubes, focal lens, reflection lens, light bulbs and fuses. This warranty extends only to the original purchaser.

FREQUENTLY ASKED QUESTIONS:

Q: Are there any parts that need to be replaced or serviced?

A: The main parts that wear with use are the laser tube and laser lens.

Q: In the event that a part is known to wear out or break, do you sell replacement parts?

A: If the spare parts break during the guaranteed time, we will send the replacement parts free of charge. After the warranty time, we do sell these parts

Q:The specs mention that it is compatible with Windows 2000/XP. Will this unit work with Windows Vista or Windows 7?

    Do you have plans to upgrade the software for newer Windows versions?

A: The NewlyDraw program has had some issues with Windows XP Professional. We have found that this can be worked with by running the program in a   compatibility mode. The manual will provide all details and instructions on how to do this.

• Wholesale is available
• OEM service is available
• Made in China

The following FDA Disclaimer is required for all eBay listing in Healthcare category and is included for REFERENCE. The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.
