製品情報
条件: 新しい | 温度: -30〜+20â | 原産地: 中国(本土) |
銘柄: lz | モデル番号: コンビタイプ | 電圧: 220v/50hz |
力(W): 500w | 次元(L*W*H): 10*10*10 | 重量: 500キロ |
保証: 1年 | 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため | 原産地: 北京、 中国 |
タイプ: の凍結 | ブランド: lz | ストア: 食品、 肉、 海の食物 |
の断熱材: ポリウレタンサンドイッチプレート | 温度: -10°c- 30°cに | 冷却システム: 空冷、 水冷、 蒸発凝縮器 |
を制御する: plcとデジタル温度コントローラ | コンプレッサー: 雑種犬、 hanbell、 コープランド | 継手: ダンフォス |
包装
包装: 木箱用のフォームがメインマシン用バブル袋冷蔵ボードやご要望などを |
仕様
1.カスタマイズされた低温貯蔵2.リーズナブルな価格3.プロフェッショナルなサービス4.抗- 爆発、 安全かつ実用的な
]

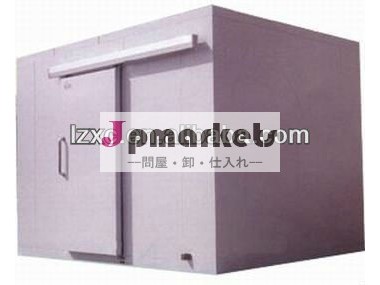

Polyurethane insulation cold storage/cold room
Feature of cold room/cold storage/cold store/ walk in freezer room / coldroom、 storage room:
Polyurethane insulation board design、 the main steel structure to facilitate construction。 portable
Sliding doors、 and out of cold storage more convenient、 easy to operate。
Water defrosting evaporator defrost faster、 save operating costs。
Cold storage door with anti- shock protection、 an increase of reliability。
Turnkey projects。
(1) temperature range: - 60・ordm;C~+20・ordm;C (- 60・ordm;F~+68・ordm;F) are all available。
(2) size: customize。
(3) functions: fresh- を維持する、 freezing、 quick- 凍結、 fire- 証拠、 explosion- 証拠、 air- conditioning are all available。
(4) fully automatic control system。
(5)easy to install and dismantle
(6) temperature alarm
(7) data logger
(8)plc electric control ( lg、 シーメンス、 omron.. Famous parts)
1 。 fabricated cold room;
2.energy saving design;
3.r404a environment friendly refrigerant;
4.bitzer or copeland 、 fusheng、 frashcold、 refcomp compressor
コンポーネント:
(1) condensing unit: bitzer、 copeland、 maneurop、 fusheng、 frashcold
(2) evaporator: keltess air- クーラー。
(3) insulation panel: pu、 eps。
(4) other accessories: world- famous brands、 like danfoss、 castle、 every control、 siemens、 lg、 シュナイダー
アプリケーション:
Food ( 肉、 vegetable、 fruit、 dairy drink、...)、 medicine、 chemical、 electronics。。。
ドア
1)。 swing door and sliding door for choice。
2)。 swing door: manual opened、 自動、 等。
3)。 door board made with special pressing technology pu material。
4)。 door fra-me: color steel or stainless steel。
5)。 surface material: color steel or stainless steel with protecting film。
パネル:
Cold room insulation panel: use 100%polyurethane insulation panel、 density ab0ut 38~46kg/m3,with gasket、 with flame retardant、 panel
厚さ: 100mm~200mm、 standard width of panel is 960mm
Cooling type
Air cooled type | Conderser fan |
Water cooled type | Water cooled condenser and cooling tower |
Evaporative cooled type | Evaporative condenser |
Cold room volume classification table: | |||
Classification of cold room | 小さな | 真ん中 | 大規模な |
Volume range | ・#・500m3 | 500~10000m3 | @・@10000m3 |
Temperature table for reference :
Storage products | Storage temperature approach |
野菜、 fruit storage | -5~5 degree centigrade |
ドリンク、 beer storage | 2~8 degree centigrade |
肉、 fish freeze storage | -18~-- 25 degree centigrade |
Medicine storage | 2~8 degree centigrade |
Medicine freeze storage | -20 degree centigrade |
肉、 fish blast freezer | -35~- 40 degree centigrade |
