製品情報
| 原産地: 中国(本土) | 銘柄: 東興 | モデル番号: Z94-3c、 z94-4c、 z94-5.5c |
| 条件: 新しい | 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため | アイテム: Z94-4c釘製造機 |
| 原材料: 線材 | ネイルの直径: 2.8-4.5mm | 爪の長: 50-100mm |
| 容量: 4キロワット | 寸法: 2.2x1.6x1.65m | 重量: 2トン |
| 速度を作る爪: 260pcs/min | 色: 緑 | パッケージ: 無料木材ケース |
包装
| 包装: パレットまたは無料木製のケース |
仕様
Atomatic鉄釘製造機: 1.工場2.別の爪3.容易な操作4.高効率

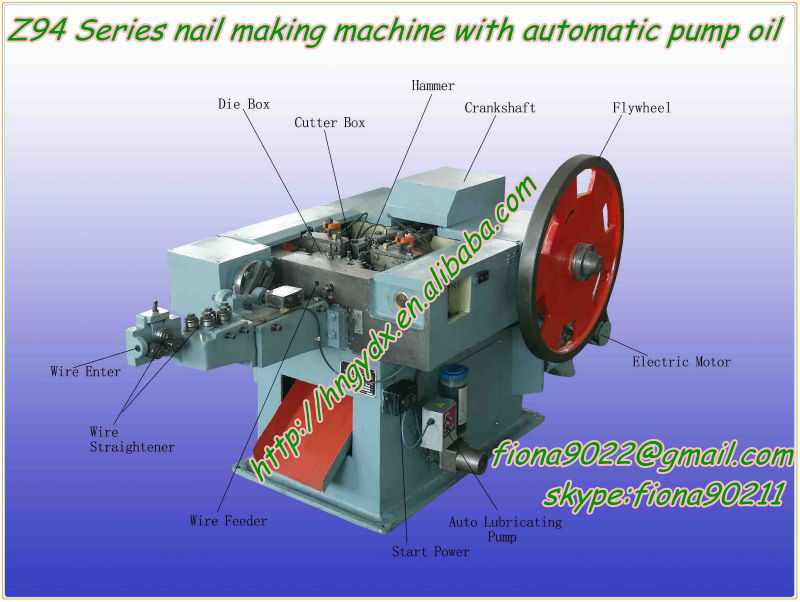

Atomatic iron nail making machine
Introduction
Nail making machine is a production facility which used to make nail.
It also named waste rebar nail machine, nail making machine can change waste rebar to nail, the invention is very environmental protection, at the same time, help many people become rich quickly.
Advantages:
Nail making machine gives priority to economic and practical applicability, its advantage is high technology, easy handle, little motive powder, save energy, stable function, and it has little volume, convenience to move, low noise, low powder consumption, easy to install etc features. That’s the reasons of why many companies, individual, family, laid-off worker and peasant like it.
Features
1 .Both of the scrap iron wire and the new steel rod can be used to make nails.
2 .This nails machine can feed the materials automatically.
3 .This nails machine has the features of high speed, low noise, less impact and good continuity.
4. All the main components are made of quality steel, such as shaft, cams and gear.
5.The profit using wasts steel is 5 times of that using finished steel.
Processes:

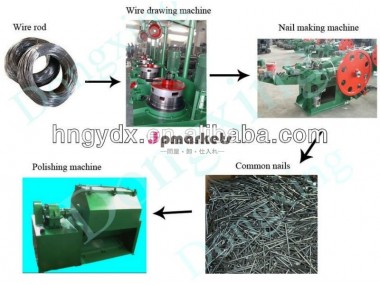

Waste rebar---A or B wire drawing machine---nail making machine(you can choice one type)---polishing machine---finish nail---packing
1, wire drawing:
You should choice which rebar do you need to make nail after you buy the nail making machine, such as new rebar, new steel wire, waste bar and so on. Waste bar is inconvenient when wire drawing, it’s slow than new rebar, but waste bar cost is very low, then the profit is very good. If you use new steel wire, the speed of produce nail is quickly.
2, nail making:
Put the wire in automatic wire feeder head pulley, and adjust the size of nail in advance.
3, polishing:
Using polishing machine polishing the semi-finished nail, add some saw powder, paraffin, oil and other material in the machine.
4, packing:
User can packing the nail as their need.
The maintain of nail making machine
1, No adjust when the machine is working
2, Keep the machine clear, wash the nail mould regularly, don’t use rust the steel wire making nail.
3, before pull the inlet wire hand shank, the nail machine should be open in advance. Stop inlet wire when you want to turn off the nail machine.
4, keep the nail knife sharp.
5, Note the temperature changes of each rub parts and abnormal noise in the machine running.
6, Turn off the powder supply before you fix the machine.
7, Use original specification when you need change some equipment parts.
8, lubrication the machine regular, when use a new machine, it should be lubricated mass in 15 days.
9, Don’t running the machine after dismantle the protective cover.
Nail making machine technical data:
Serial number | Product name | Model | Main purpose | diameter of wire | Power(kw) | Weight(kg) | Designed output |
1 | Nail making machine | Z94-5.5C | Manufacturing 4-6 inches of nails | 3.8-5.2mm | 5.5 | 2300 | 200pcs/min |
2 | Nail making machine | Z94-4C | Manufacturing 2-4 inches of nails | 2.8-4.5mm | 4.0 | 2000 | 260pcs/min |
3 | Nail making machine | Z94-3C | Manufacturing 1.5-3 inches of nails | 1.8-3.1mm | 3.0 | 1000 | 300pcs/min |
4 | Nail making machine | Z94-2C | Manufacturing 1-2 inches of nails | 1.2-2.8mm | 2.2 | 800 | 350pcs/min |
5 | Nail making machine | Z94-1C | Manufacturing 0.5-1 inches of nails | 0.9-1.8mm | 1.1 | 500 | 450pcs/min |

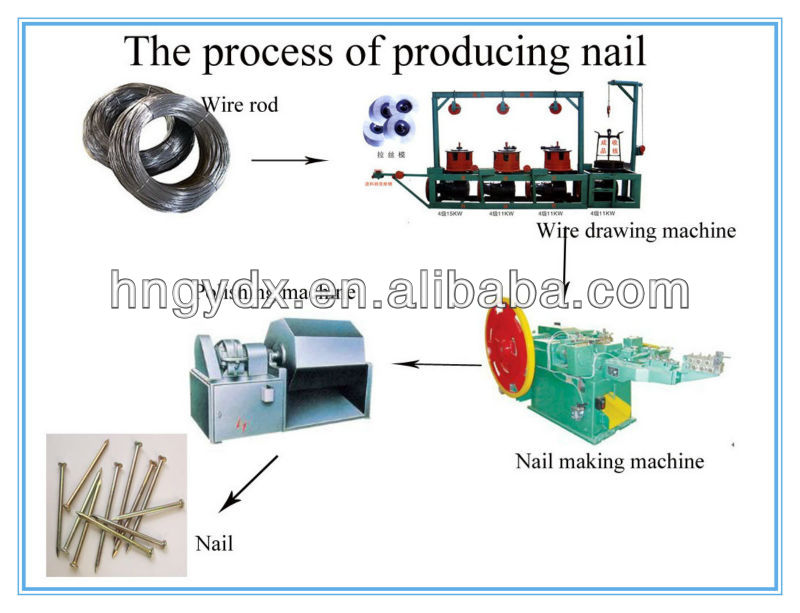

The process of producing nails
If you are interested in our nail making machine,please contact with me without any hesitation.
Welcome to our factory.
