製品情報
| 原産地: 中国(本土) | 銘柄: yto | モデル番号: t80 |
| 条件: 新しい | 移動タイプ: 爬行動物ブルドーザー | 危機重量: 8850/9000kg |
| 寸法 （長さ×幅×高さ）: 42002544x800mm | 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため | 色: 黄色 |
包装
| 包装: ヌード、 40フィートコンテナ |
仕様
総weight8850/9000kgの刃width2544/2934mmエンジンはpower60KWのheight784/715mmブレード最大上昇量の最高の牽引力を評価した

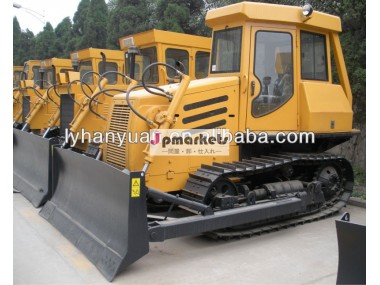

T80
trackdのブルドーザーの小型ブルドーザーのクローラーブルドーザーの価格
販売
のための Small Bulldozer
MAIN FEATURES
1. The diesel engine is manufactured by using joint venture technologies.
2. The traction mechanism is of the semi-rigid suspension car type.
3. The bulldozer adopts the two-plate dry primary clutch、 which is easy to maintain.
4. The steering is hydraulically supported and the bulldozer is hydraulically operated.
5. The machine is installed with the DONGFANGHONG LR4105ZG52 boosting engineの with high power、 low noise、 energy conservation and low consumption.
6. Gearbox is 4F+2R fixed-shaft mechanical gear shifting、 applicable for various environments.
7. Integral trolley traveling construction adopting rigid chassis and semi-rigid hanger.
fully hydraulic aided steering 8. Advanced operation control system with flexible and labor-saving operation.
9. Driver cab is welded with profile steelの with high strength、 resistant against impact、 and good protection safety.
10. Applicable for construction in narrow ground、 with flexible working and high operation efficiency.
11. Standard heating and ventilation equipment、 air conditioner optional.
Each maintenance center has humanized design、 improving the convenience of repair and maintenance.
12. The complete machine has good economical power and high reliability、 being an ideal machine for project construction.
TECHNICAL SPECIFICATIONS
モデル |
| T80 |
Total weight | kg | 8850/9000 |
Max towing force | KN | 82 |
Engine model |
| LR4105ZG52 |
Engine rated power | KW | 60 |
Engine rated speed | r/min | 2200 |
Fuel Consumption of the engine | g/kw.h | ≤235 |
Engine max torque | N.M | 313 |
Forward I-IV gears | km/h | 2.4~10.4 |
Reverse I-II gears | km/h | 4.9~8.9 |
Max slope angle | o | ≥30 |
Caterpillar track board width | mm | 400/650 |
Land pressure | Kpa | 51/34 |
Overall length | mm | 4200 |
Overall width | mm | 2544 /2934 |
Overall height | mm | 2740/2890 |
Blade width | mm | 2544/2934 |
Blade height | mm | 880/930 |
Blade max lifting height | mm | 784/715 |
Blade max digging depth | mm | 357 |
Cutting angle (調節可能な) | o | 55 |
