製品情報
| 版のタイプ: スクリーンプリンター | 条件: 新しい | 原産地: 中国(本土) |
| 銘柄: hengjin | モデル番号: Hs-350r | 使用法: ラベルプリンター |
| 自動等級: 半自動 | 色及びページ: 単一色 | 電圧: 110/220v |
| 全体のパワー: 40w | 寸法 (L*W*H): 760ミリメートル1680ミリメートル720ミリメートルxx | 重量: 170kg |
| 証明: ce認証 | 保証: 1年 | 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため |
| 自動瓶のスクリーン印刷機: 空気圧円筒コーヒーカップ用スクリーン印刷機 | 自動: pnuematic | 色: 1色 |
| シリンダー: ドイツfesto社 | 機械材料: 合金鋳造アルミニウム | 画面のフレーム: 400*600mm |
| 最大径: 110ミリメートル径 | ミニプリント直径: 15mm径 | 最大印刷サイズ: 250*350mm |
| 標準: ce認証 |
包装
| 包装: 画面の印刷機械/1.外側のパッケージ: 標準輸出木製ケース、 2.インナーパッケージ: ストレッチフィルム。 |
仕様
画面の印刷機械空気圧円筒1.印刷110ミリメートル径2.ce規格3.ドイツフェストシリンダー4.2年間保証

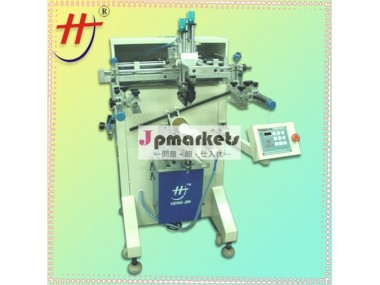

HS-350R cylindrical pneumatic screen print machine for papaer cup
Product Descri-ption
screen print machine Application:
This style machine is Regular which is comprehensive using to cylindrical articles, such as, pen, bottle, cup, mug and so on
screen print machine Feature:
1. Comprehensive function, can printing cylindrical, conical and great circle surface and flat products.
2. Per position is induction with elctric eye, having accuracy position and excellent function.
3. The Squeegee moving from left to right with guide pillar structure, moving smoothy, ligh and hardy to provide the printing quality.
4. The Squeegee moving from left to right with FESTO ORIGA which suitable to high accuracy pritnting.
5. The screen fra-me raising and down with guide pillar, high accuracy, moving stable.
6. As your need, can setting printing once, twice etc.
7. Stable function, the whole machine is controlled by Microcomputer.
8. As the customer requested, Setted two program, single cycling and automatic printing.
9. With Japan Germany pneumatic components, dynamic smoothy and durable.
10. Can remember the setted program.
screen print machine parameter:
Item Number: | HS350R | Printing Speed | 1000 pcs/ hour |
Max printing Size: | Dia: 110mm | Max screen fra-me size | 350x 500 mm |
Air comsumption | 2.1l/ cycle | Power | 20 w |
Air apply | 6 bar | Voltage of source | 220V/ 1 phase |
Dimention | 720mm X 760mm X 1680mm | Net Weight | 170Kg |
Screen print machine samples show:
Warrantee: 1 year.
Payment: 30% deposit in advance. The balance against the machine is ready.
Training: Manual or CD or you can come to visit our factory for free of charge to training.
Mini order: 1 pieces
Delivery Time: 5-7 works when receive your payment.
Business Item: FOB/ CIF/ CFR/ EXW
Guarantee and after-sale service:1.One year guarantee for whole machine except of consumable
2.24 hours technical surpport by e-mail
3.Calling or door-to-door service
4.Use-friendly English software, user manual and detailed Videos/ CD
