製品情報
| タイプ: エアコンは分ける | 原産地: 中国(本土) | 銘柄: BLUE |
| モデル番号: BLR/VLR-10A-F/F-100 |
包装
| 包装: 1ボックスに1個.我々は量が私達に必要なに到達した場合顧客に基づいてボックスは必須です設計することができます. |
仕様

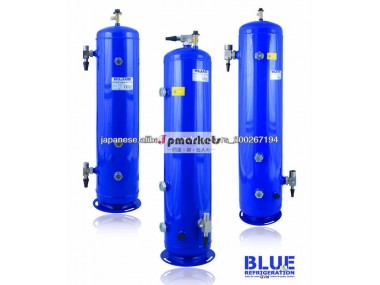

BLR/ VLR-DS VERTICAL LIQUID受信機（10A）
テクニカルデータ
オプショナル
1/2 "NPTF接続
1/2 "NPT FLUG
液面センサ
| Model | Volume （Lt.） | Dimensions | Connections | ||||
| NPTF | Sight Glasses | Inlet & Outlet - Rotalock Valve | |||||
| Diameter (mm) | Length (mm) | Connections (Inch) | Inlet(Inch) | Outlet(Inch) | |||
| BLR/VLR-10A-F/F-100 | 100 | ∅ 406 | 910 | 1/2" NPTF | - | 2 1/4" -12 UN 1 5/8" ODS | 1 3/4"-12 UN 1 3/8" ODS |
| BLR/VLR-10A-F/F-100x1 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-100x2 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-125 | 125 | ∅ 406 | 1120 | 1/2" NPTF | - | 2 1/4" -12 UN 1 5/8" ODS | 2 1/4" -12 UN 1 5/8" ODS |
| BLR/VLR-10A-F/F-125x1 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-125x2 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-125x3 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-150 | 150 | ∅ 406 | 1340 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-10A-F/F-150x1 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-150x2 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-150x3 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-175 | 175 | ∅ 406 | 1560 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-10A-F/F-175x1 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-175x2 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-175x3 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-200 | 200 | ∅ 406 | 1780 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-10A-F/F-200x1 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-200x2 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-200x3 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-225 | 225 | ∅ 406 | 2010 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-10A-F/F-225x1 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-225x2 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-225x3 | SG-1 3/4 | ||||||
| BLR/VLR-10A-F/F-225x4 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-175 | 175 | ∅ 450 | 1280 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-11A-F/F-175x1 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-175x2 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-175x3 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-200 | 200 | ∅ 450 | 1450 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-11A-F/F-200x1 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-200x2 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-200x3 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-225 | 225 | ∅ 450 | 1630 | 1/2" NPTF | - | 2 1/4" -12 UN 2 1/8" ODS | 2 1/4" -12 UN 2 1/8" ODS |
| BLR/VLR-11A-F/F-225x1 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-225x2 | SG-1 3/4 | ||||||
| BLR/VLR-11A-F/F-225x3 | SG-1 3/4 | ||||||
- 使用圧力[PS]：33Bar
- テスト圧力[PT]：48Bar
- 許容温度[TS]：最小 - 10°C/Max.-130°C
- カラー[RAL]：5009
- 一般Tolerans[mm]と：±3
