製品情報

条件: 新しい	タイプ: 線形	適用: 鉱石
原産地: 中国(本土)	銘柄: huazn	モデル番号: ns
電圧: 380v	力(W): 30kw	次元(L*W*H): 2.2*4.8*5.1m
重量: 4.92t	証明: iso、 ce	保証: 12月
提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため	タイプ: 振動ふるい	保証: 12月
色: 白赤青など。	証明書: Iso9001: 2008sgs	販売前と後のサービス: 利用可能な
odmサービス: 利用可能な	oemサービス: 利用可能な	ローカル認証: 利用可能な

包装

包装: 標準コンテナ、 ヌードパックにまたはバルク。

仕様

1.日本の技術2.高いスループットと効率性3.良いスクリーニング性能4.長寿命、 低コスト化

Mian Techical Parameters

Model	Size of screening surface                   (mm)	Layer of screen	Mesh size (mm)	Amplitude (mm)	Capacity (t/h)	Power  (kw)	Weight   (kg)
NS7-16	2140*4880	1	2.5-200	9.5	126-1155	15	5412
		2	2.5-200	9.5		15	6039
NS7-20	2140*6100	1	2.5-200	9.5	144-1320	22	6985
		2	2.5-200	9.5		22	7711
NS8-20	2440*6100	1	2.5-200	9.5	172-1584	22	7876
		2	2.5-200	9.5		22	8866
		3	2.5-200	9.5		2*15	15499
NS9-20	2750*6100	1	2.5-200	9.5	180-1750	30	10428
		2	2.5-200	9.5		30	11517
NS10-20	3050*6100	1	2.5-200	9.5	216-1980	2*22	13937
		2	2.5-200	9.5		2*22	15235
		3	2.5-200	9.5		2*30	23001
NS10-24	3050*7320	1	2.5-200	9.5	220-2000	2*22	15642
		2	2.5-200	9.5		2*22	17248
NS12-24	3660*7320	2	2.5-200	9.5	220-2200	2*37	36278

 Remark:

1.  The above technical parameters are depended by the crushed materials with the bulk density 1.6t/m, which are only for reference.
2. The capacity in above table may change according to the different crushed   materials, work conditions and other different factors.

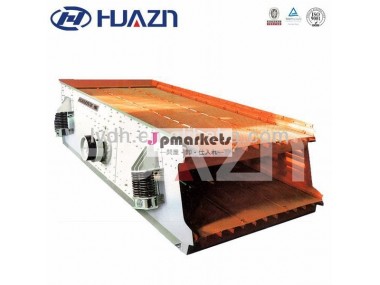

NS Vibrating Screen general introduction

NS series Vibrating Screen is technical cooperation with EARTHTECHNICA CO., LTD. Japan. It applies the advanced dynamic analysis technology and reasonable structure to ensure the steady running and durability of the equipment; applies the technology to weaken the vibration in order to avoid horizontal wobble caused by the sympathetic vibration when start and stop the machine; applies the most appropriate inclination, frequency and amplitude to prevent the screen block effectively, which ensure the high throughput and efficiency; applies the oil-bath lubrication to ensure the sufficient lubrication for bearing and extend the working life; applies the standard feed box.. The tension technology of screen camber extends the working life of screen, which ensure the good screening performance.



Feature

It applies the advanced dynamic analysis technology and reasonable structure to ensure the steady running and durability of the equipment.

It applies the technology to weaken the vibration in order to avoid horizontal wobble caused by the sympathetic vibration when start and stop the machine.

It applies the most appropriate inclination, frequency and amplitude to prevent the screen block effectively, which ensure the high throughput and efficiency.

It applies the oil-bath lubrication to ensure the sufficient lubrication for bearing and extend the working life.

It applies the standard feed box. The tension technology of screen camber extends the working life of screen, which ensure the good screening performance.

Industrial vibrating screen machine cooperation with japan
