製品情報
タイプ: 管の溶接機 | 管材料: ステンレス | 適用: 他 |
原産地: 中国(本土) | 銘柄: bg | モデル番号: Ycg-40/50/60/80/100 |
アプリケーション: パイプのすべての種類を生成する | 保証: 1年間 | 色: あなたのニーズごと |
包装
包装: ndard輸出パッケージ、 安全なコンテナ輸送用 |
仕様
主に使用の生産のためのステンレス鋼管。
詳細な製品説明
1.ステンレス鋼チューブミル
2.i so9001
3.あなたの選択のための様々な仕様
4.正確な、 高品質、 最高の価格
1.名:
自動ステンレス鋼管の溶接機、 ステンレス鋼管マヒマヒを作る、 工業用チューブのマシン、 チューブミル。
2.アプリケーション:
主に使用の生産のための工業用ステンレスパイプ。
3.業界導入:
としての成熟した技術ステンレス鋼溶接管、 シームレスパイプ多くの地域で置き換えられてい、 そのような化学、 製薬、 醸造所、 オイル、 食品、 自動車用、 紙、i ndusryおよび空調。
4.自動化された生産プロセス:
本をopen 、 洗浄装置、 送り方向、 を形成する、 溶接、 内部の平和全体溶接します、 アウター溶接、 研削、 サイジングshapping、 溶体化処理、 最終的なサイジング、 矯正、 テスト、 マーキング、 セットフィート、 カットオフ( コイル)、 アンロードフレーム。

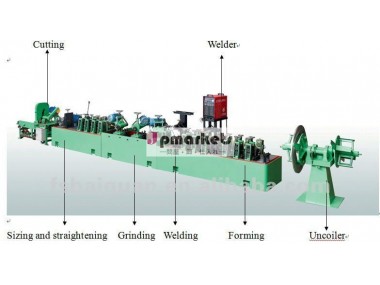

5.機械主なコンポーネント:
アンコイラ機、 溶接機を形成する、 研削盤、 ユニット2つのサイズ設定、 フレーム矯正、 切断機、 フレームを終え。
6.管径の範囲:
8mm-219mm
7.パイプの厚さ:
0.5mm-5.0mm
8. 最高のサービス:
1)。 provide the relevant shipping charge information、 take charge of loading and the relevant shipping procedure、 focus on the safety of the goods and the shipping time。
2)。 provide the technical documents ab0ut machinery installation、 maintenance、 operation and so on。
3)。 provide the technical support ab0ut the machinery installation、 maintenance、 operation and so on。
4)。 provide the equipment list of the main components。
5)。 responsible for the equipment installation and commissioning guidance。
6)。 provide one year warranty ( 男- made damage without insurance、 the vulnerability of non- 保険)。
7)。 provide post- paid warranty service after shelf life。
8)。 foshan charged affairs for the customers: apply for the certificate、 find the relevant products of this industry、 find the master worker、 provide the information we know of the relevant weld pipe industry。
9)。 provide our customers with limited space for short- term storage of other company's products、 provide charged affairs for express and shipping。
9.技術的なパラメータ:
アイテム | 水平軸径( mm) | 垂直径( mm) | パイプ径( mm) | パイプの厚さ( mm) | メインモータ電源 | 機械的なアセンブリサイズ( l*w)( m) |
Ycg-40 | 40 | 25 | 8-51 | 0.5から2.0 | フロント: 7.5kw バック: 5.5キロワット | 29*1.5 |
Ycg-50 | 50 | 30 | 25-63 | 0.5から3.0 | フロント: 1.1キロワット バック: 7.5kw | 32*1.5 |
Ycg-60 | 60 | 40 | 50-114 | 0.6-3.5 | フロント: 15キロワット バック: 15キロワット | 35*1.8 |
Ycg-80 | 80 | 50 | 89-168 | 1.0-4.5 | フロント: 18.5キロワット バック: 18.5キロワット | 40*2.5 |
Ycg-100 | 100 | 60 | 114-219 | 1.0-5。 | フロント: 22キロワット バック: 22キロワット | 43*3.0 |
