製品情報
| 銘柄: TOPS | モデル番号: Y Series | タイプ: 誘導電動機 |
| 頻度: 50HZ, 60HZ, 50HZ/60HZ | 出力電力: 0.06KW-315KW | 特徴を保護しなさい: 全く封じられた |
| 段階: 三相 | 証明: CCC, セリウム, ISO9001 | AC電圧: 380v |
| 原産地: 中国(本土) | 効率: IE 1 |
包装
| 包装: Motor will be packed in strong carton or wooden case, plywood case according to the motor fra-me |
仕様
1) CE, ISO, SONCAP, SGS, VOC, etc 2) 2 year warranty 3) 100% copper wire 4) Power: 0.06KW-315KW 5) Free spare parts
Operating Conditions:
| Altitude | ≤1000m |
| Rated voltage | 380V, 400V, 460V, 600V, 690V 110V, 115V, 120V, 220V, 230V, 240V |
| Rated frequency | 50HZ/60HZ, 50HZ, 60HZ |
| Duty/Rating | Continuous(S1) |
| Insulation class | Class B, F |
| Protection class | IP55, IP54, IP44 |
| Cooling method | IC0141 |
Brief Introduction:
1) Y & Y2 series motor is totally enclosed and fan cooled 3 phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC&DIN42673 standards. Y connection for motor of 3kw and below. Delta connection for 4kw and above.

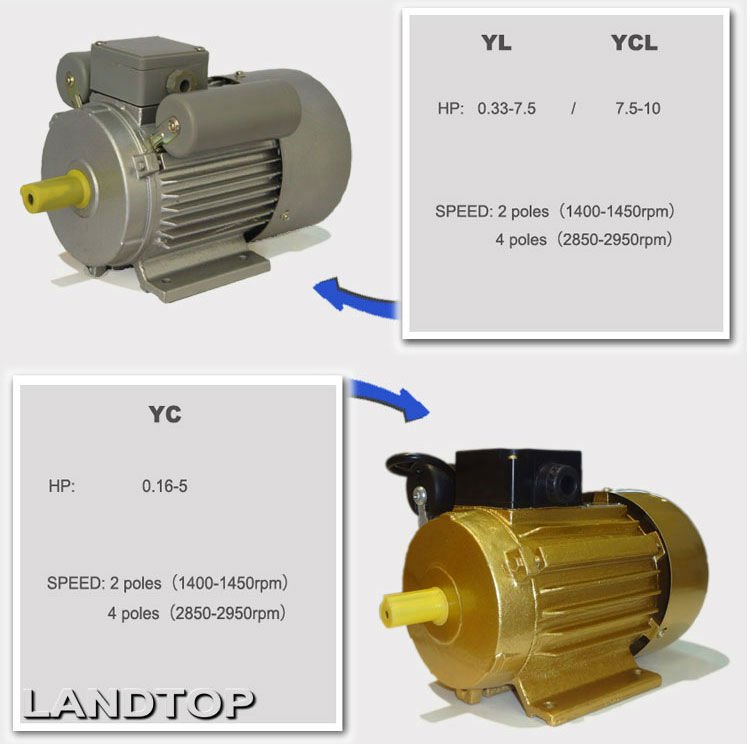

2) YC, YCL series heavy-duty 1 phase motors are totally enclosed fan cooling type. It is cast iron housing high starting torque motors.
3) YL serires 1 phase cast iron housing dual capacitor induction motor are adopted modern technology, it has higher starting torque and higher efficiency.
4) JY series single phase capacitor start induction motor is suitable for any placeds where a larger starting torque and the starting current to be limited. This series motors have three fra-me sizes, 09, 1 and 2 of totally enclosed fan cooled type. The fra-me is cast iron.
5) MS series motor which adopting the latest design and high quality meterial is conformed to the IEC Standard. The efficiency of motor meets Eff2 standard in Europe and Eff1 standard if request. The motor with removable feet is made of aluminum alloy die casting. User could mount it with various mounting type. The housing is aluminum.
6) ML, MY, MC series single phase aluminum housing induction motor conforms to the IEC standard. The motor is with removable feet. User can fit according to their needs.
Note:
The voltage and frequency could be made according to your request. If you have any requirements, please contact us.

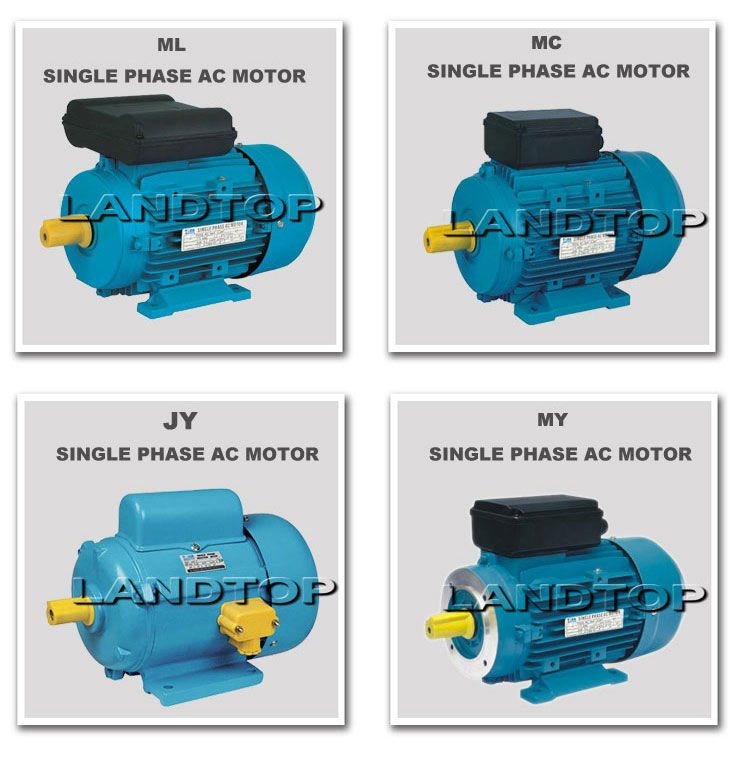

Single phase AC motor:

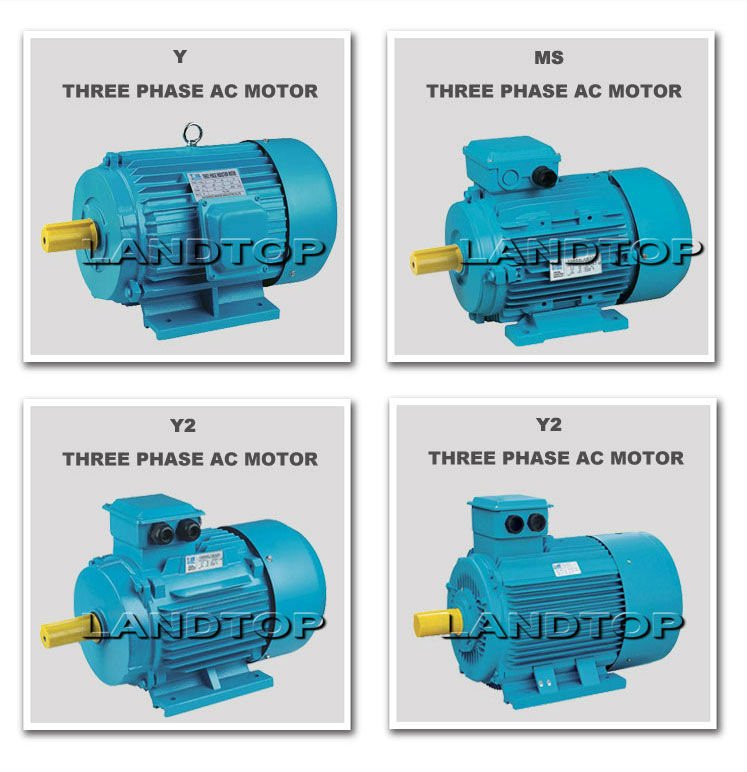

Three phase AC motor:

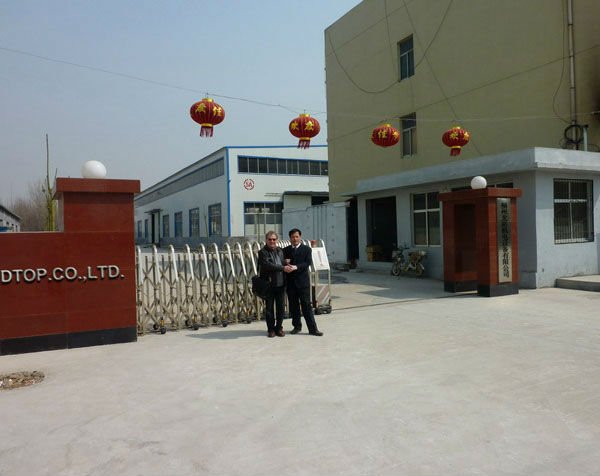

Factory Brief:
Fuzhou Landtop Co., Ltd. specialize in manufacturing and exporting a wide range of electromechanical products, including Alternator, Generator, Electric Motor, Water Pump, Gasoline Generator set, Diesel Generator set,etc.

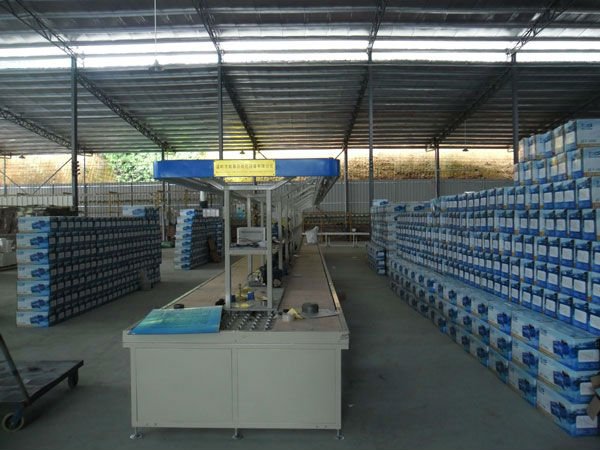

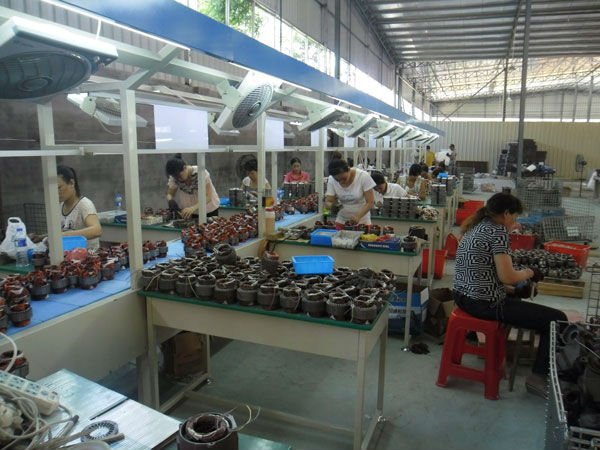

With years of development, we have developed into a large-scale, modern, comprehensive and international company. Our company is located in Fuzhou, a sea-port city, which enjoys a well-developed transportation network. We also have our own plants in Fu'an city (Mindong Electromechanical City). Our company is equipped with a great number of precise assemble lines, integrated testing system and checkout equipment; with a group of staff including professional engineers, skilled QC, experienced salesmen and best after-service. The current annual export production value is over 15 million dollars.
We are always making great efforts to achieve the integration of manufacturing, supplying and selling. Also, we are able to well meet our customers' demand, providing them products with superior quality. Our products, owing to the excellent staff, reasonable price, high efficiency and energy saving, are widely acclaimed in over 80 countries including Europe, America, Southeast Asia, Middle East and Africa etc. In addition, all of our products have obtained the ISO9001: 2008, CE as well as CQC certificate etc.
Factory certificate:
Our product was selled all over the world.
Not only they can be found in these Asia country above,but in the Africa &American area as well.
Our packing:
All your cargo would be took good care. our usual packing:
motor will be packed in strong carton or wooden case, plywood case according to the motor fra-me.
