製品情報
設計: 2ポスト | タイプ: 1つのシリンダー油圧上昇 | 証明: セリウム |
持ち上がる容量: 3.5トン | 持ち上がる高さ(mm): ミリメートル1900 | 総幅(mm): ミリメートル3590 |
原産地: 中国(本土) | 銘柄: 日照 | モデル番号: Qj-y-2-35d |
事業の種類: 輸出・製造所 | スタイル: clearfloor車のリフト | 用法: 修理の車の |
ドライブモード: 油圧 | 標準色: 赤または青、 はデュポンパウダーブランド |
包装
包装: 輸出ボックスとスチールフレーム |
仕様
日光に工場ブランド車のリフト15年の輸出経験の40カ国以上からクライアント

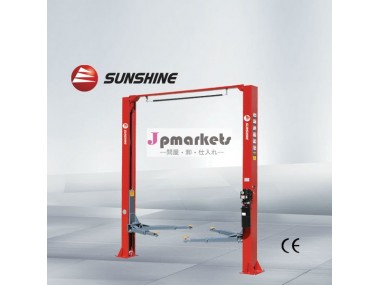

モデル: qj- y- 2- 35d clearfloor 2 post lift 3.5 ton
With double side manual release、
dissymmetrical arms、
12 month warrant
仕様:
吊り上げ能力: | 3500キロ( 8000lbs) |
ポストの高さ: | 3590mm |
車の最大揚高さ: | 1900mm |
最小の高さ: | 115mm |
支柱の間にクリアランス: | 2800mm |
総幅: | 3419.6mm |
ポスト材料の幅: | 4.5mm |
腕の最大長さ: | 1370/1215mm |
アーム最小の長さ: | 841/725mm |
時間を持ち上げる: | 50s |
時間を下げる: | 30代 |
電源電圧: | 220v/380v、 1ph/3ph |
正味重量: | 640kg |
総重量: 580キロ | 660キロ |
寸法をパッキング: | 840*290*340mm |
3560*520*820mm | |
立方メートル: cbm1.5 | Cbm1.5 |
輸送負荷: | 12pcs/20" ft |
Our car lift has the features as follows:
1.column is made of the original plate、 long- term use of non- 異形
2.electrostatic powder coating、 corrosion- 耐性。
3.i ncrease the slipway and arm protective rubber。
4.the lowest height of the tray is only 120mm、 it will be suitable to all car models。
5. pipeline explosion- proof valve。
6. lifting capacity: maximum lifting weight is the1.2 times of the rated weight 。 limited lifting weight is 1.6 times of the rated weight。
7. the power unit is ce certificated。
8. oil seal can beused for 8- 10 years。
9. warranty time is 12 months after received and within this period、 if there is any quality question、 you will receive new parts in 7 days by free。
いくつかの写真のための車のリフトworkshop as以下:
