製品情報

設計: 2ポスト	タイプ: 二重シリンダー油圧上昇	証明: セリウム
持ち上がる容量: 3ton	持ち上がる高さ(mm): 1900mm	総幅(mm): 1840mm
原産地: 中国(本土)	銘柄: Launch	モデル番号: TLT630A

包装

包装: full set

仕様

T630A Double Scissor Lift 1 original with high quality 2 Oil hose anti-explosion device 3. Capacity: 3Ton 4.CE approve

auto scissor lift/scissor lift car



Descri-ption

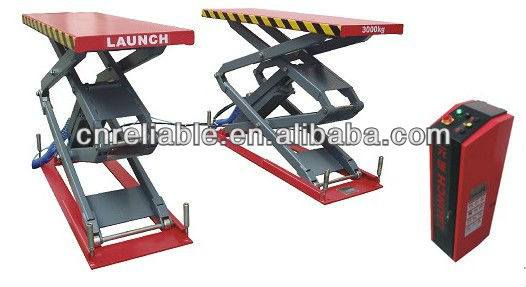

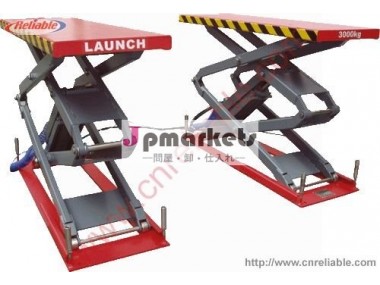

Double Scissor Lift (Rated Capacity: 3Ton)



Features:

1>Standard 3t small double scissor lift .

2>In-ground installation type ,without occupying space.

3>It's convenient for demounting tyres and repairing chassis with
synchronous hydraulic cylinders assembly.

4>The lift features advanced ,deft and reasonable design, durability, and
compact layout.

5>Anti-explosion safety device makes it stable and reliable operation.

6>Travel limit safety device ,protects machine from being damaged.

7>All moving points adopt automatic lubricating oil-free bearing for
ensuring long lifespan.

8>Oil hose anti-explosion device.



9>CE certificated.



Specification



Rated load:	3000kg
Lifting height:	1900mm
Initial height:	300mm
Lifting time:	≤50s
Lowering time:	≥20s
Runway width:	520mm
Runway length:	1580~1900mm
Advised distance between two runways:	800mm
Overall width:	1840mm
Safety method:	Mechanical safety lock + pneumatic release
Motor power :	2. 2kw
Motor voltage:	3 phase/380v or Single phase/220V



Spare Parts:

No. PartCode PartName
1  201020428  Platform
2  103200840  Joint Axle
3  103200842  Middle Axle
4  103990102  Power Pack (380V50Hz3ph)
5  104990090  Hydraulic Hose 6II-3000
6  104990085  Hydraulic Hose 6II-3500
7  104990084  Hydraulic Hose 6II-350
8  103160063  High Pressure Stop Valve
9  102160383  Air Pressure Regulator and Filter
10  102990066  Muffler
11  201011076  Air Cylinder
12  102100083  Button LA39-22/g
13  102110059  Contactor s-p11 AC24V
14  102110067  Time Relay H3Y-2 DC24V 0-10S
15  201020310  control box of small Scissor
