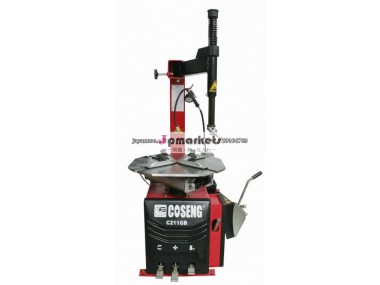

製品情報
| モーター力: 1.1 kw / 0.75 kw | 最大枠直径: 39" | 最大の枠幅: 12" |
| オペレーティング圧力: 8 bar | 電源: 110V/ 220V/ 380V | 原産地: 中国(本土) |
| 銘柄: Coseng | モデル番号: C211GA |
包装
| 包装: Packing Size: 97* 77* 100 cm Shipping weight: 225 kg |
仕様
1. Coseng design double-structure cabinet. 2. High quality pressure tubing made in Japan.
1. Coseng design double-structure cabinet.
2. High quality pressure tubing made in Japan.
3. 80 mm wide swing arm design for strength in mountingand demounting tires.
4. Adjustable long protection sleeve forvertical hexagonal arm.
5. 200mm Bead Breaker System with 2500 kg of bead breaking force.
6. Coseng proprietary rotating uniodesign.
| Model | C211GA |
| Outside Clamping | 10"-18" |
| Inside Clamping | 12"-20" |
| Max. Wheel Width | 12" |
| Max. Wheel Diameter | 39" |
| Working air pressure | 8 bar |
| Bead Breaker Force | 2500 kg |
| Max. Rotating Torque (Turntable) | 795 ft.lbs (1078N.m) |
| Noise Level | < 70 db |
| Shipping Weight | 225 kg |
| Voltage Options | 110V/50Hz/60Hz 1PH 220V/50Hz/60Hz 2 PH 380V/50Hz/60Hz 3 PH |
| Packing Size | 97*77*100 cm |
