製品情報
| 原産地: 中国(本土) | 銘柄: Fanwell | モデル番号: FW-J121-B |
| 車は作る: all cars | 周波数範囲: 1575.42MHZ | ゲイン(dB): 28Dbi |
| ケーブルの長さ: 1.2M or other | Connector: AVIC-D1 |
包装
| 包装: PE bag |

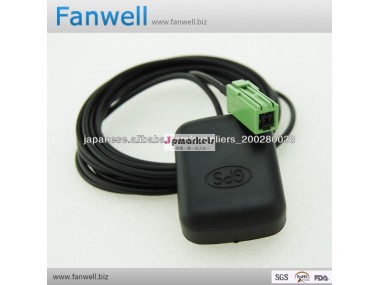

external antenna Dielectric Antenna
Center Frequency:1575.42±3 MHz
V S W R:1.5:1
Band Width:+-5 MHz
Impendence:50Ω
Peak Gain:3dBic Based on 7×7cm ground plane
Gain Coverage:4dBic at -90degree 0+90 degree(over 75% Volume)
Polarization:RHCP
LNA/Filter
LNA Gain Without cable:28dB Typical
Noise Figure:1.5dB
Filter Out Band Attenuation:1575.42MHz/
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V S W R:2.0
DC Voltage:3V,5V,3V to 5V or other
DC current:5mA,10mA,Max
Mechanical
Weight:100gram
Size:48.5X37X15mm
Cable:RG174 5M
Connector:SMA,MCX,MMCX, SMB or other
Mounting:Magnetic base/sticking
Housing:Black
Environmental
Working Temp:40degree C~+85degree C
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
