| サイズ: mm | 原産地: 中国(本土) | 銘柄: XL, ZXY |

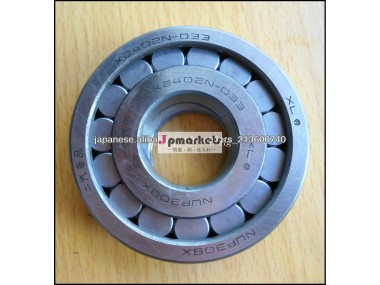

| モデル番号: NUP308X | Structure: Cylindrical | Inner Diameter(d/mm): 35 |
| Outside Diameter(D/mm): 90 | Breadth(B/mm): 23 | Weight(kg): 0.81 |
| Seals Type: Good/open | Material: bearing steel | Color: Silvery |
| Certificate: ISO/TS16949:2009 |
包装
| 包装: each independent packing,22pcs/carton 1. Industrial packing 2. XL packing 3. According to customers requirement |
Directions for Use
1. The bearing should be stored in ventilated, dry, non-corrosive gas, where the relative humility is no more than 60%, for bearing that have been preserved for a long time, they must have rust protection regularly (no more than a year).
2. When installing the bearing, hard tools should not be used to hit directly, the pressure should not pass the rolling element, auxiliary tools with even pressure should be used to install the bearing. If the interference is too high, the bearing should be heated in the mineral oil to 90 to 100 Celsius degrees, then be installed immediately.
3. Clutch release bearing and seal bearing have been filled with grease, so they need no clearing when installing and using. Avoid by no means oil cooking, or other heating.
4. When using the bearing, there should have good lubrication and seal dust-proof device, and check the work state regularly.
5. All the above terms must be paid attention to, otherwise it will affect the bearing precision and service life.
