製品情報
| 原産地: 中国(本土) | 銘柄: LC | モデル番号: LC104 |
| 色: 透明 | 証明書: ISOの9001:2008 | テストレポート: ROHS/REACH |
| CAS NO。: 4428-95-9 | MF: CH3O5P | タイプ: 総合的な樹脂およびプラスチック |
| 材料: 合成ポリマー |
包装
| 包装: 25kgs/bag/カートン |
仕様
1つの)良い熱抵抗2つの)酸およびアルカリの抵抗3の)高温抵抗4の)炎-抑制剤5の)高い純度

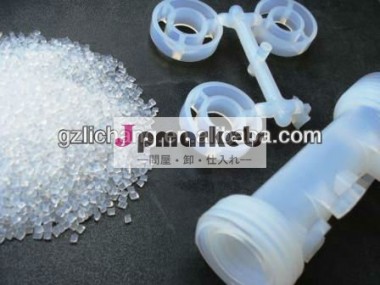

PFA resin (Polytetrafluoro Ethylene)
特徴: Fine heat resistance、 cold resistance、 chemical durability、 mechanicalness、 insulation、 lubricity、 breaking and cracking resistance.
適用: Its widely used in acid resistance、 alkali resistance injection and valve lining products、 high-temperature resistance electric wire and cable.
The characteristics of PFA and uses: PFA commonly known as fusible PTFE、 chemical preservative various properties of fluorine plastic crown. Widely used in the semiconductor industry、 and medical automotive and other fields.
PFA LC104 Technical Parameter:
Physical Performance | Specific Gravity (g/cm3) | 2.12-2.17 |
Melting Point () | 302-312 | |
Mechanical Performance | Tensile Strength (MPa) | 20-29 |
Breaking Extension () | 250-300 | |
Compression Intensity (MPa) | 16.7 | |
Shore Hardness | 60 | |
Coefficient of Kinetic Friction | 0.2 | |
Melting Index | 14-18 | |
Thermal Performance | Maximal Temperature of Continuous Work () | 250 |
Thermal Distortion Temperature () (1.82 MPa) | 47 | |
Coefficient of Linear Expansion x105 (K-1) | 12 | |
Electrical Performance | Volume Resistance (Ω·) | 1018年 |
Insulation Breakdown Voltage (3.2mm) | 20 | |
Relative Dielectric Constant (1KHz) | 2.1 | |
Dielectric Loss Angle Tangent Value (tanδ) X106Hz | 0.0003 |
