製品情報
| 原産地: 中国(本土) | 銘柄: soki | モデル番号: cat 6 cable |
| タイプ: 猫6 | コンダクターの数: 8 | type: cat 6 cable |
| Jacket: PVC,LSZH | Conductor: copper | specification: UTP,FTP,STP,SFTP |
| Certifications: CE,ROHS,CCC,UL | Wire gauge: 23AWG 0.57mm | Fluke test: pass |
| Application: network | package: 305m/roll | delivery time: 7-15days |
包装
| 包装: 305m per carton box |
仕様

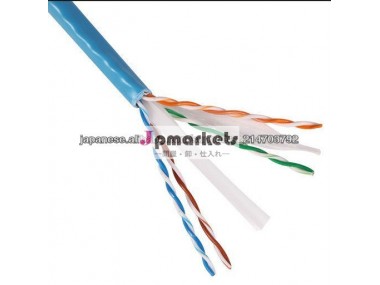

cat 6 cable 1. Conductor: Bare Copper/CCA/CCS 2. Insulation: PE 3.Jacket: PVC 4.Shield: AL-Mylar tape
LSZH solid copper sftp cat 6 cable with CE certified(23awg)
Specification:(Includes:)
Conductor
PE insulation
PVC Jacket
Seperator: PE crossing
Rid cord: Optional
PVC sheath
Conductor
Material: pure copper
Bunmber of pairs: 4
AWG :23
Conductor diameter:0.57mm
Insulation:
Material: HDPE
Diameter:1.02mm
Average thickness:0.212mm
Minimum point thickness:0.2095mm
Jacket:PVC(5.8mm)
Rid cord: Optional
Seperator: PE crossing
Sheath:
Material: PVC or LSOH
Nominal diameter: 5.2
Average thickness:0.55mm
Minimum point thickness 0.545mm
Operating temperature: -20 to 75°C
Minimum bend radius (install): (OD) 8mm
Flame test: CMX, CM, CMR, CMG, MP
Reference standard: ANSI/TIE/EIA-568BISO/IEC 11801
Applications :
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Cable Construction :
Conductor | Material | Bare Copper | |
Size | 23 AWG | ||
Construction | 1/0.5750 ± 0.005 mm | ||
Insulation | Material | Foam-Skin PE | |
Thickness | Average: 0.414 mm Min. at any point: 0.364mm | ||
Material | 1.387 ± 0.05 mm | ||
Colors | Blue/White-Blue , Orange/White-Orange | ||
Green/White-Green , Brown/White-Brown | |||
Elongation | Min. 150 % | ||
Tensile strength | Min. 0.51 Kg/mm² | ||
Shield | Al-Mylar Type | Aluminum foil on outside | |
Mylar Type | |||
Braid | Material | Tinned Copper | |
Coverage | Min. 40% (Nom. 48 %) | ||
Sheath | Material | PVC | LSZH |
Thickness | Average: 0.54 mm | Average: 0.54 mm | |
Min. at any point: 0.40 mm | Min. at any point: 0.40 mm | ||
Diameter | 7.2 ± 0.3 mm | 7.2 ± 0.3 mm | |
Color | Assorted upon request | Assorted upon request | |
Elongation | Min. 100% | Min. 125% | |
Tensile strength | Min. 1.407 Kg/mm² | Min. 0.917 Kg/mm² | |
168100Aging at 100 for 168Hrs | :50% Min.elongation retention:50% :75% Min.tensile strength retention:75% | Min.elongation retention:75% Min.tensile strength retention:70% | |
Packaging & Delivery

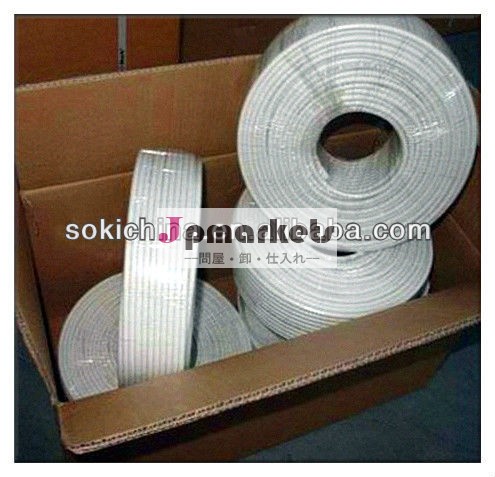

Packaging Detail: | 305M, 21.2*35.5*35.5cm per pull box, 3 pull boxes in 1 carton box, 66*37*37cm per carton box, Loading Quantity:933Boxes/20GP, 2266Boxes/40HQ, or as per customer's standard. |
Delivery Detail: | 3-15 Days after deposit received depending on quantity |
Advantage
1. 20 years experience in cable field 2. Prompt delivery:5-15 days after deposit 3. CCC,ISO, ROSH/CE certificate 4. OEM / ODM welcomed 5. Competitive factory price due to own material factory 6. Wide product range |
Main product
Cat5e/6 cable | Patch cable | Coaxial cable | Audio &Video cable | Alarm cable |
Speaker cable | TV cable | Electrical Wire | LV Power cable | Bare copper wire |
Rubber cable | Control cable | Speaker cable | Flexible cable | Telephone wire |
OEM/ODM order is welcomed.
Factory View
Established in 1994, Shenzhen Soki Technology Co., Ltd. is a professional manufacturer integrating the R&D, manufacture, sale and service of Lan cable,Coaxial cable, Alarm cable,Telephone cable, Electrical wire&cables, Low voltage power cable, Control cable, Rubber cables and other related cable products.
Located in Shenzhen, we enjoy convenient access to major transportation networks. Covering an area of 15,000 square meters, Our daily production capacity amounts to 600,000 meters. As we produce some materials in-house and purchase some from stable suppliers, we can control the cost well and provide lower price than other suppliers.
We accept OEM and customize according to customer needs. Moreover, all our products are compliant with CCC, ISO9001, CE, RoHS and other standards.
Our products have been exported to Europe, South America, Southeast Asia, Middle East and get good reputations from our customers. In the hope of long-term corporation, we do business on a basis of equality, cordiality and mutual benefits.
