| 原産地: | 中国(本土) | テーブルのサイズ: | 2800ミリメートルx 1260ミリメートル | 銘柄: | hanmoke | モデル番号: | hisl | 重量: | 1120キログラム | 評価される積載量: | 2000キログラム | 保証: | 12ヶ月 | Min.持ち上がる高さ: | 450ミリメートル | 上昇のドライブ/作動: | 油圧 | 最高。 持ち上がる高さ: | 1700ミリメートル | 上昇のメカニズム: | 上昇を切りなさい | 力: | 3.7kw | 提供される売り上げ後のサービス: | 提供される海外サービス無し | 資料の種類: | 鋼 |
包装
| 包装: | 標準輸出梱包またはあなたの要求に従って |
Product Description

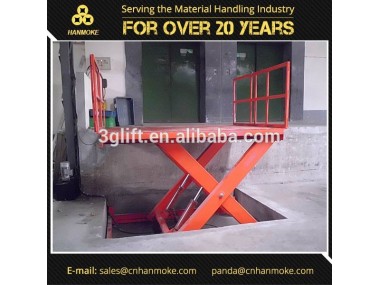

Electric Hydraulic Dock Lift
Without any new construction or building ready to use loading facilities, this hydraulic dock lift can solve your all standard requirements for loading unloading application.
Specifications:
| Model | HISL-2017-2813 | |
| Load capacity | kg | 2000 |
| Lift height | mm | 1700 |
| Lowered height | mm | 450 |
| Platform size | mm | 2800 x 1260 |
| Power source | V | AC 380V, 3-phase |
| Lifting motor | kW | 3.7 |
| Raise / lower speed | seconds | 16 / 22 |
| Net weight | kg | 1120 |
Features & Benefits:
• It will expand your present dock capacity and create loading facilities wher no dock exists, without new construction
• A dock lift provides ground level access to trucks, railcars or buildings
• Without any new construction or building ready to use loading facilities
• Automatic return to cross traffic.
• Lift bypass feature to prevent damage to obstructions/doors.
• Control box includes red emergency stop button.
Applications :
